More consistent circular travel
Powered rotation helps maintain a controlled travel rate around suitable pipes, flanges and other round workpieces.

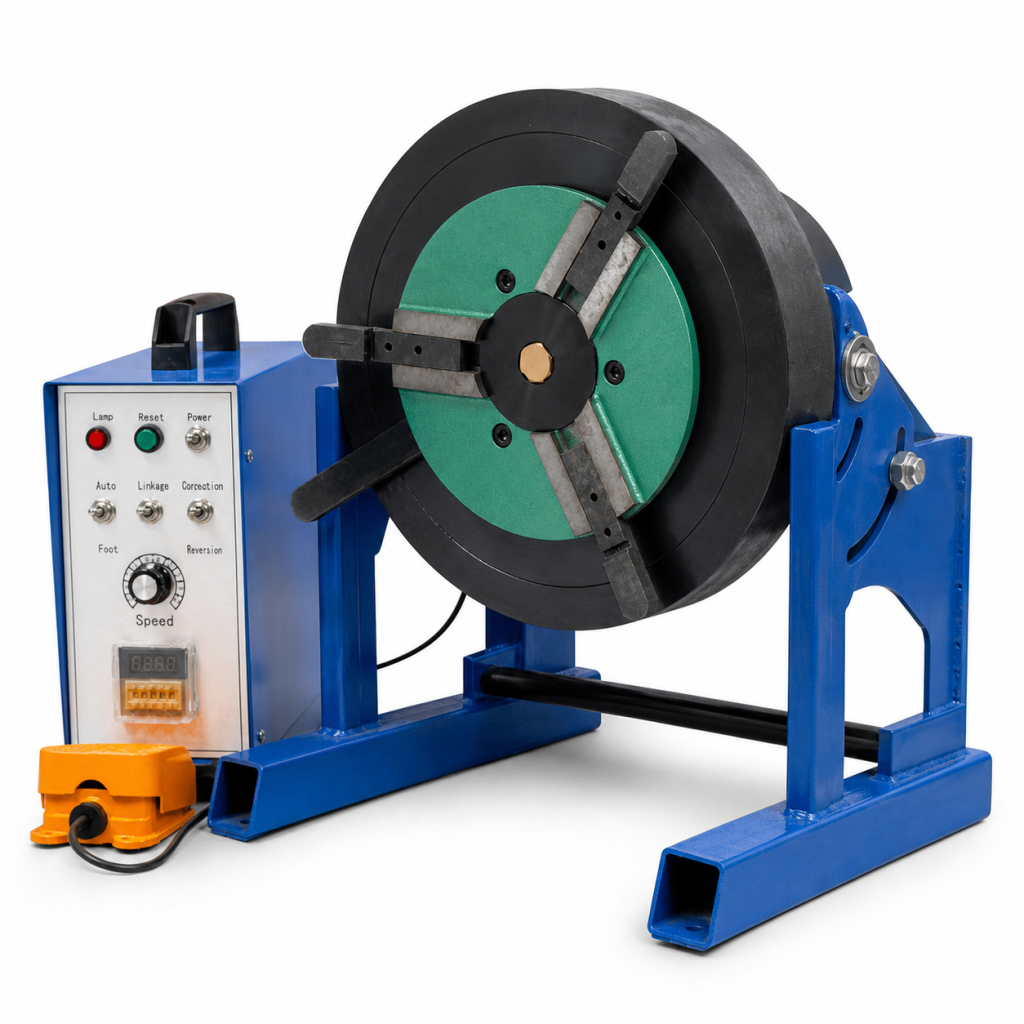

AWS TurnPro 30 kg Welding Positioner
220V
Variable-speed rotary welding positioner for pipes, flanges and circular welds, with 1-15 rpm rotation, a 0-90-degree adjustable table, foot-control operation and load ratings of 30 kg horizontally or 15 kg vertically.
R10925,00 incl. Vat
In stock
Horizontal load
30 kg
Vertical load
15 kg
Rotation speed
1-15 rpm
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Horizontal load 30 kg
The supplied sheet lists a 30kg horizontal bearing load.
Vertical load 15 kg
The supplied sheet lists a 15kg vertical bearing load.
Rotation speed 1-15 rpm
Variable rotation speed is listed from 1 to 15 revolutions per minute.
Work angle 0-90 degrees
The table angle adjusts between horizontal and vertical positions.
Table diameter 315 mm
The supplied specification sheet lists a 315mm table diameter.
Input 220 V / 80 W
The sheet lists 220V input and an 80W motor.
Why this machine
Hands-free operation
Use the foot control to operate the positioner while keeping both hands available for welding.
Adjustable work position
Tilt the table from 0 to 90 degrees to present the joint at a more practical welding angle.
Keep circular welds moving at a controlled pace
The AWS TurnPro is a powered rotary welding positioner for suitable pipes, flanges, rings and other round workpieces. Controlled rotation helps reduce repeated stops and repositioning while keeping the joint at a practical working angle.
Match the rotation to the job
Adjust the turntable from 1 to 15 rpm to suit the workpiece diameter, welding process and required travel rate. The 315 mm table is driven by an 80 W motor on a 220 V supply.
Work horizontally or tilt towards vertical
The table adjusts from 0 to 90 degrees. Rated bearing load is 30 kg horizontally and 15 kg vertically. Safe loading also depends on balance, centre of gravity, chucking and the selected table angle.
Operate rotation without tying up your hands
Foot-control operation lets the welder control the positioner while keeping both hands available for the torch and job. An earth lug is provided for the welding return connection. Confirm the pedal, leads, chuck and exact package contents before ordering.
| Horizontal bearing load | 30 kg |
| Vertical bearing load | 15 kg |
| Rotation speed | 1-15 rpm |
| Operational angle | 0-90 degrees |
| Table diameter | 315 mm |
| Table height | 339 mm |
| Motor power | 80 W |
| Input voltage | 220 V |
| Applicable chuck | 240 mm |
| Control | Variable speed and foot control |
| Earth connection | Earth lug |
- Exact package contents require confirmation
- Confirm TurnPro positioner
- Confirm 240 mm chuck
- Confirm foot control and leads
The supplied AWS TurnPro sheet does not state warranty or return terms. Exact package contents, chuck inclusion, foot-control inclusion, coverage, exclusions, remedies, return conditions and transport responsibilities must be confirmed in writing before purchase. Your rights under applicable consumer law still apply.
Common questions
Before you buy.
What is the TurnPro's rotation speed?
The TurnPro provides variable rotation from 1 to 15 rpm.
What load can the TurnPro carry?
Rated bearing load is 30 kg with the table horizontal and 15 kg with the table vertical. Actual safe loading also depends on balance, centre of gravity, chucking and table angle.
Can the table tilt vertically?
Yes. The table adjusts from 0 to 90 degrees.
Is a foot control included?
Foot-control operation is listed as a feature and pictured, but the sheet does not provide a formal package list. Confirm that the pedal and required leads are included before ordering.
Does it include a chuck?
The sheet lists a 240mm chuck as a feature and also calls 240mm the applicable chuck size. Confirm whether the chuck is included in the saleable package.
What jobs suit this welding positioner?
It is intended for suitable pipes, flanges, rings and other round workpieces that benefit from controlled rotation. The workpiece, chucking, earthing, speed and welding procedure must all be compatible.
How should a workpiece be loaded?
Secure and balance the workpiece before rotation, keep within the applicable load rating and account for centre of gravity at the selected angle. Follow the supplied operating instructions and workplace lifting and guarding procedures.
What warranty applies?
The supplied sheet does not state warranty or return terms. Ask Amalgum to confirm the written product-specific terms before purchase.
