Hot start and anti-stick
Built-in starting and anti-stick functions help establish the arc and reduce electrode sticking.

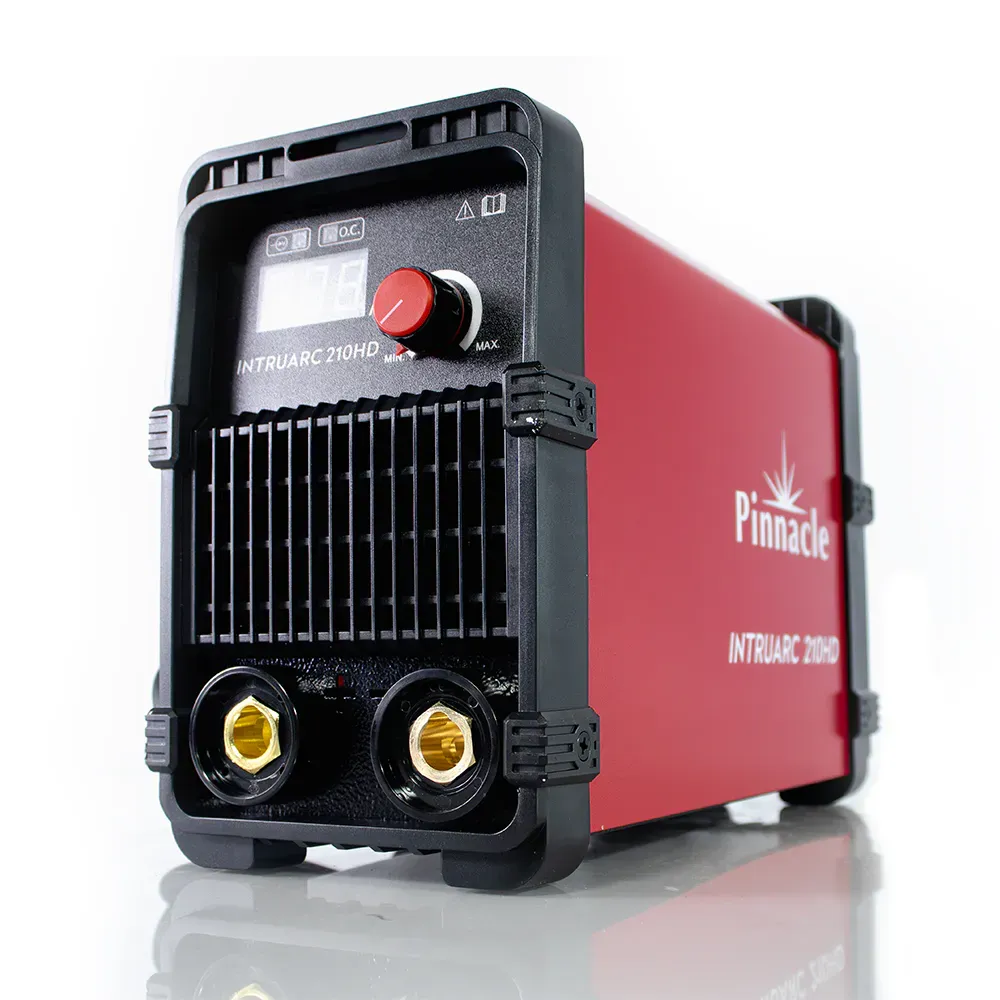

Pinnacle IntruARC 210HD
200A · 60% duty · 230V
Digital IGBT MMA/ARC inverter with LIFT TIG capability, 30-200A output, hot start, anti-stick, arc force and intelligent electrical protection.
R2 185,00
In stock
Output range
30-200 A
Duty cycle
60%
Input voltage
230 V +/-15%*
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Output range 30-200 A
The sheet lists a 30A to 200A output-current range.
Duty cycle 60%
The sheet states 60% but does not identify the reference amperage or test conditions.
Input voltage 230 V +/-15%*
The technical table states 230V +/-15%; a separate feature icon says 220V. Confirm the rating plate before use.
No-load voltage 61 V
The technical table lists a 61V no-load voltage.
Efficiency 80%
The supplied technical table states 80% efficiency.
Electrodes 2.0-4.0 mm
The sheet lists applicable electrode diameters from 2.0mm to 4.0mm.
Why this machine
Built-in arc force
The sheet lists arc force control for steadier MMA welding under changing arc length.
Electrical protection
The sheet lists over-current, over-voltage and overheating protection.
Digital MMA control up to 200A
The IntruARC 210HD is a compact MMA inverter with a digital display and a 30-200A output-current range. Built-in hot start, anti-stick and arc force functions support electrode starting and arc control.
MMA and LIFT TIG processes
The supplied sheet lists MMA and LIFT TIG. The package includes an electrode holder and earth cable, but does not list a TIG torch or TIG consumables.
Confirm the supply voltage
The technical table states 230V +/-15%, while the feature icon says 220V. The listing uses the technical-table value provisionally; confirm the machine rating plate and electrical supply before installation.
| Welding Process | TIG, Stick / ARC / MMA, Multi-Process |
| Start Method | Lift TIG |
| Rated input voltage | 230 V +/-15% (technical table; 220V feature icon conflicts) |
| Rated frequency | 50/60 Hz |
| Rated supply current | 35.6 A |
| Output current range | 30-200 A |
| Output voltage range | 21.2-28 V |
| Duty cycle | 60% (reference amperage not stated) |
| Power factor | 0.73 |
| No-load voltage | 61 V |
| Efficiency | 80% |
| Electrode size | 2.0-4.0 mm |
| Insulation class | F |
| Protection class | IP21 |
- Inverter power source
- Electrode holder
- Earth cable
The supplied IntruARC 210HD sheet does not state warranty or return terms. Exact coverage, exclusions, remedies, return conditions and transport responsibilities must be confirmed in writing before purchase. Your rights under applicable consumer law still apply.
Common questions
Before you buy.
Does the IntruARC 210HD use 220V or 230V?
The supplied sheet conflicts: its feature icon says 220V, while the technical table states 230V +/-15%. This listing uses the table value provisionally. Confirm the rating plate and have the supply checked before installation.
Which welding processes are listed?
The sheet lists MMA/ARC and LIFT TIG.
Does it include the equipment for LIFT TIG?
The package lists the inverter power source, electrode holder and earth cable. It does not list a TIG torch, regulator or TIG consumables, so those must be confirmed and ordered separately.
What does the 60% duty cycle mean?
The sheet states a 60% duty cycle but does not provide the reference amperage or test conditions. It should not be read as 60% at the full 200A output without confirmation.
Which electrodes can it use?
The technical table lists electrode sizes from 2.0mm to 4.0mm. Confirm electrode type and suitable amperage for the job.
What protection functions are listed?
The sheet lists protection against over-current, over-voltage and overheating.
What comes in the package?

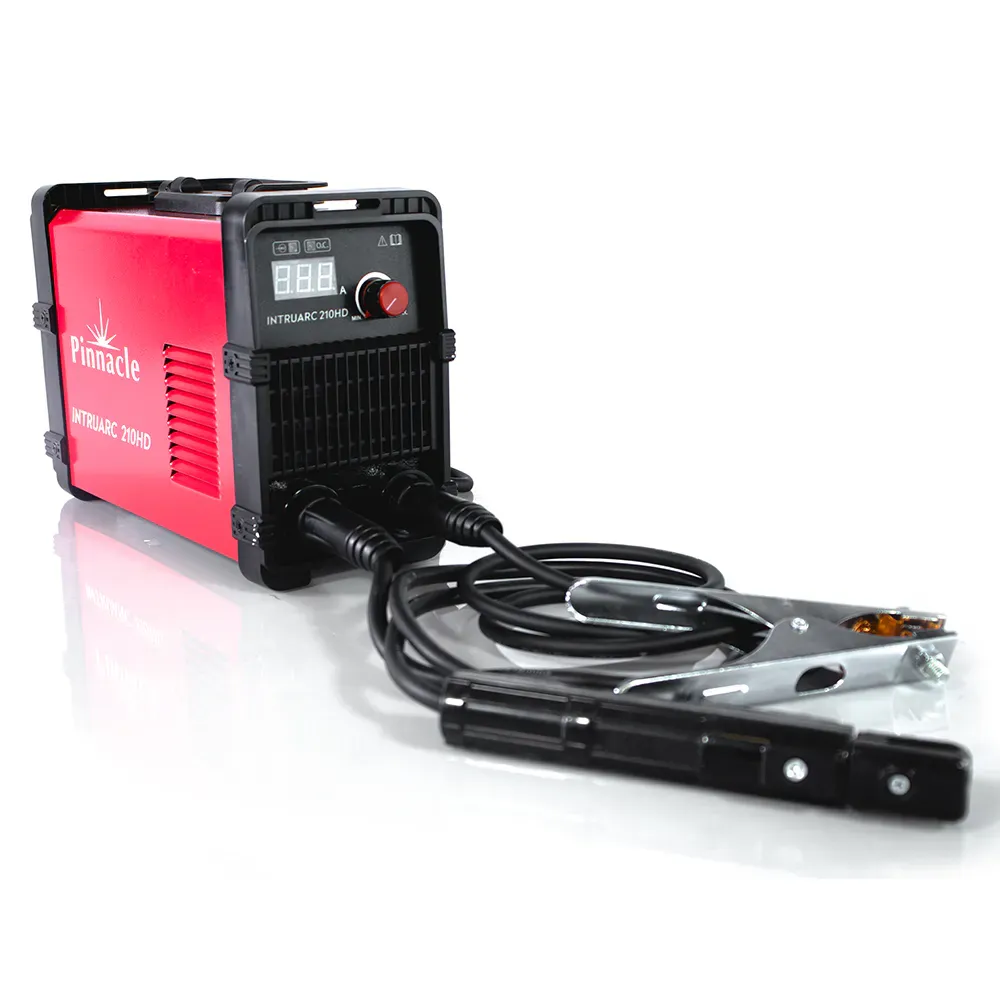

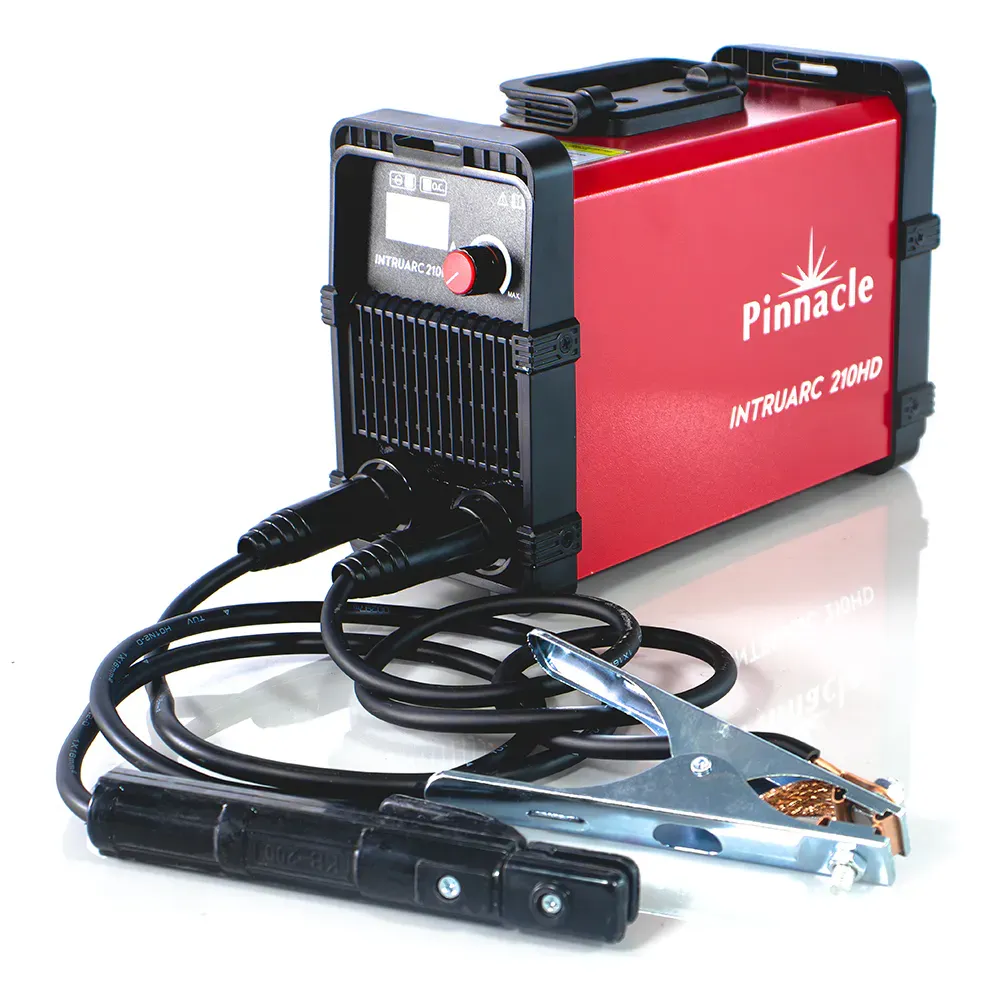

The supplied package list names the inverter power source, electrode holder and earth cable. Cable lengths are not stated.
What warranty applies?
The supplied sheet does not state warranty or return terms. Ask Amalgum to confirm the written product-specific terms before purchase.
Ready when the numbers fit
Pinnacle IntruARC 210HD
Review the confirmed specification, then add it to your quote basket or ask us about the job before deciding.
Delivery charges depend on the order and destination. Gas orders and delivered orders below R2,000 attract transport charges; collection can be arranged as an alternative.
R2 185,00
Not sure this is the right one?
WhatsApp us the job and we'll tell you — including when a different product fits better.
Reviews
There are no reviews yet.
