Easy to carry
A listed 1.5kg weight makes the compact inverter practical for light maintenance and mobile repair work.
Rilon MMA 120E ARC Stick Welder
120A · 60% duty · 220V
Compact 1.5kg, 220V MMA inverter with a 30-120A welding range, hot start, arc force and digital DSP control.
R1 035,00
In stock
Output range
30-120 A
Machine weight
1.5 kg
Duty cycle
60%
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Output range 30-120 A
The technical table lists a 30A to 120A welding-current range.
Machine weight 1.5 kg
The sheet lists a compact 1.5kg machine weight.
Duty cycle 60%
The sheet states 60% without identifying the reference amperage or test conditions.
Input voltage 220 V +/-15%
The technical table specifies AC 220V +/-15% at 50/60Hz.
Efficiency 85%
The supplied technical table states 85% efficiency.
Item code 6-11RL01
Use this code to confirm the exact machine and package.
Why this machine
Easier electrode starting
The sheet-listed hot-start function helps establish the arc when striking an electrode.
Steadier MMA control
Arc-force control helps maintain the arc as electrode distance changes.
Compact MMA welding up to 120A
The Rilon MMA 120E is a compact stick-welding inverter with a 30-120A output range. At a sheet-listed 1.5kg, it is easy to carry between light repair, maintenance and site tasks.
Hot start and arc force
Hot start helps establish the arc when striking an electrode, while arc force supports a steadier weld when arc length changes. A digital 32-bit DSP controller and tubular IGBT inverter are also listed.

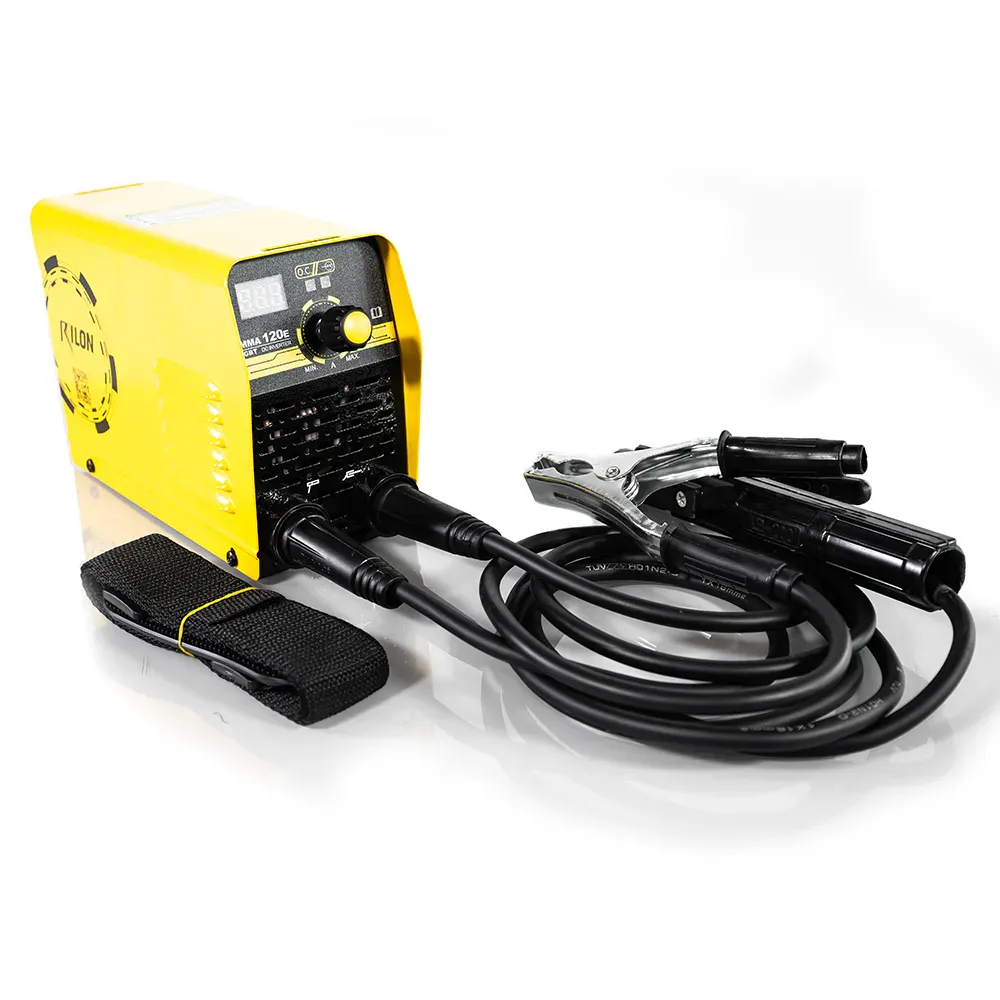

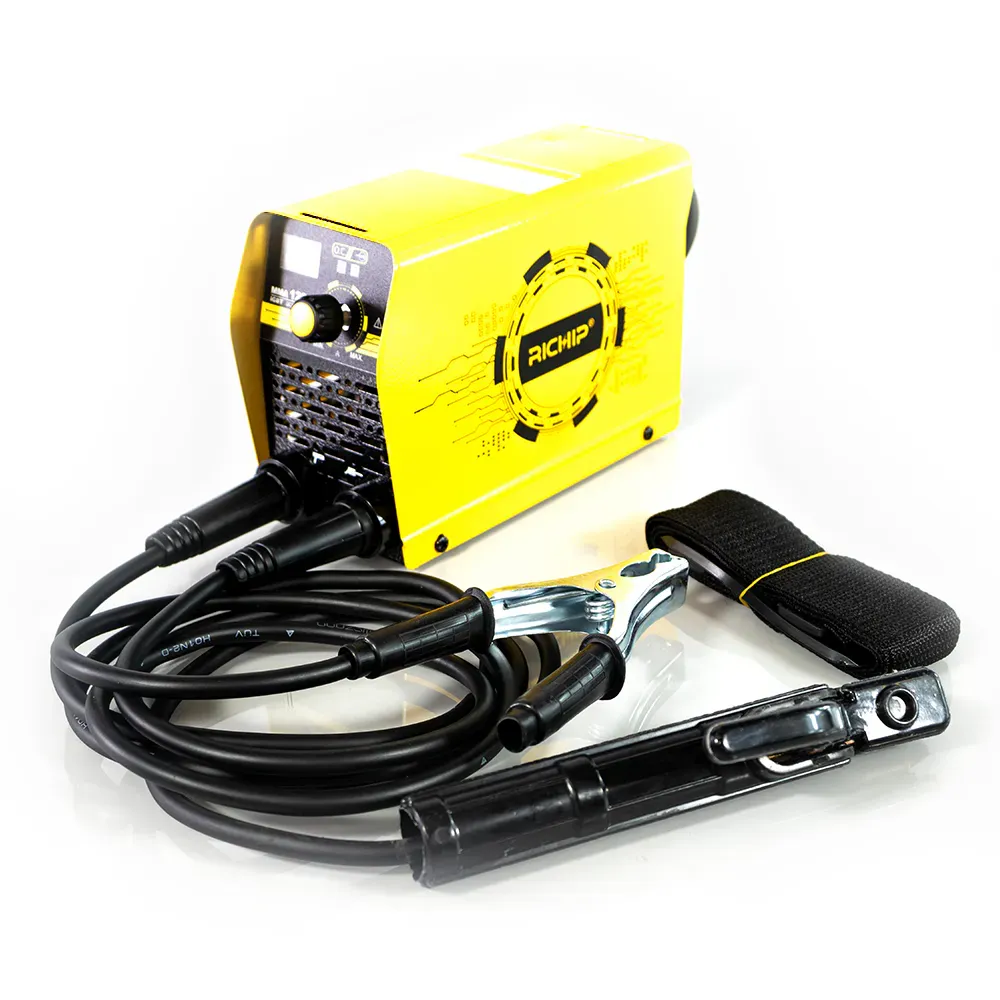

Leads included
The package includes the inverter power source, a 1.5m electrode holder and cable, and a 1.2m earth cable.
| Welding Process | Stick / ARC / MMA |
| Input Voltage | 220V |
| Output Amperage | 120A |
| Rated input voltage | AC 220 V +/-15% |
| Rated frequency | 50/60 Hz |
| Rated input current | 20.5 A |
| Welding current range | 30-120 A |
| Rated duty cycle | 60% (reference amperage not stated) |
| Output no-load voltage | 60 V |
| Efficiency | 85% |
| Power factor | 0.63 |
| Insulation class | F |
| Protection class | IP21 |
| Dimensions | 204 x 87 x 146 mm |
| Weight | 1.5 kg |
- Inverter power source
- 1.5m electrode holder and cable
- 1.2m earth cable
The supplied Rilon MMA 120E sheet does not state warranty or return terms. Exact coverage, exclusions, remedies, return conditions and transport responsibilities must be confirmed in writing before purchase. Your rights under applicable consumer law still apply.
Common questions
Before you buy.
Which welding process does the Rilon MMA 120E support?
The supplied sheet lists MMA, also called stick or ARC welding.
What current range does it provide?
The technical table lists a 30-120A welding-current range.
What comes in the package?
The package includes the inverter power source, a 1.5m electrode holder and cable, and a 1.2m earth cable.
What does the 60% duty cycle mean here?
The sheet states a 60% duty cycle but does not provide the reference amperage or test conditions. It should not be interpreted as 60% at the full 120A output without confirmation.
Does it have hot start and arc force?
Yes. Both functions are listed on the supplied product sheet.
What electrical supply is required?
The sheet states AC 220V +/-15% at 50/60Hz. Have a qualified electrician confirm the plug, circuit and installation requirements.
What warranty applies?
The supplied sheet does not state warranty or return terms. Ask Amalgum to confirm the written product-specific terms before purchase.
Ready when the numbers fit
Rilon MMA 120E ARC Stick Welder
Review the confirmed specification, then add it to your quote basket or ask us about the job before deciding.
Delivery charges depend on the order and destination. Gas orders and delivered orders below R2,000 attract transport charges; collection can be arranged as an alternative.
R1 035,00
Not sure this is the right one?
WhatsApp us the job and we'll tell you — including when a different product fits better.
Reviews
There are no reviews yet.
