High-output MIG and MMA ranges
Use one sheet-listed power source across 40-500A MIG and 20-500A MMA output ranges.

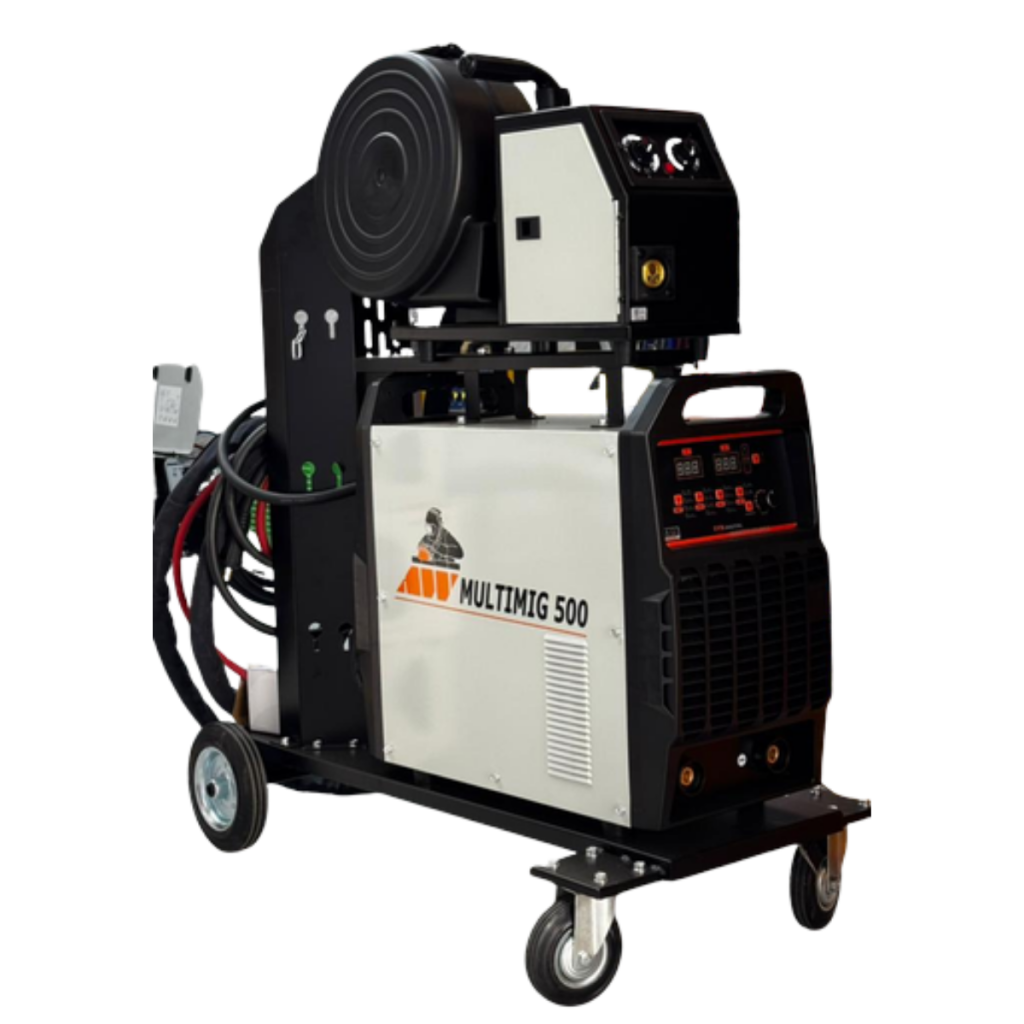

DABU MIG-500 Industrial MIG/MMA Welder
500A · 100% duty · 380V
Industrial AC 380V MIG/MMA inverter welding machine with 40-500A MIG output, 20-500A MMA output, synergic control and a sheet-stated 100% duty cycle at 387A.
R31,625.00 incl. Vat
In stock
MIG output
40-500 A
MMA output
20-500 A
Rated duty cycle
100% at 387 A
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
MIG output 40-500 A
The supplied sheets list a 40A to 500A MIG current range.
MMA output 20-500 A
The supplied sheets list a 20A to 500A MMA current range.
Rated duty cycle 100% at 387 A
The sheets state a 100% duty cycle at 387A; test conditions are not provided.
Input Three-phase AC 380 V +/-15%
The sheets state AC 380V +/-15% input and 13.8kW input power; Amalgum Welding Shop has confirmed the machine is three-phase.
Wire range 0.8-1.6 mm
The listed wire-diameter range is 0.8mm to 1.6mm.
Protection IP21S
The supplied sheets list an IP21S protection degree.
Why this machine
MIG process controls
Adjust inductance, 2T/4T trigger mode, burn-back and post-gas, with synergic control also listed.
Built around larger wire sizes
The stated 0.8-1.6mm wire range covers heavier MIG-wire formats for workshop production.
Need a quote?
Talk to the AWS Sales team.
Send your machine, material, output and delivery requirements. The AWS Sales team will respond within one working day.
The DABU MIG-500 is a 500A industrial MIG welder from the AWS Welders range at Amalgum Welding Shop. It combines a 40-500A MIG range with a 20-500A MMA range in one inverter power source.
500A industrial MIG welder output and duty cycle
The supplied sheets rate the machine for three-phase AC 380V +/-15% input and 13.8kW input power. They also state a 100% duty cycle at 387A. Test conditions are not provided, so the figure is presented exactly as the sheets state it. Listed wire diameters run from 0.8mm to 1.6mm, and the sheets list an IP21S protection degree.
Controls for repeatable MIG setup
Sheet-stated functions include inductance adjustment, 2T/4T trigger modes, burn-back, post-gas and synergic control. The listed package is a 40KD MIG torch with 3m cable and a 500A electrode holder. It also includes a 500A earth clamp, two 3m 50mm2 cables and an air regulator.
Machine configuration and installation

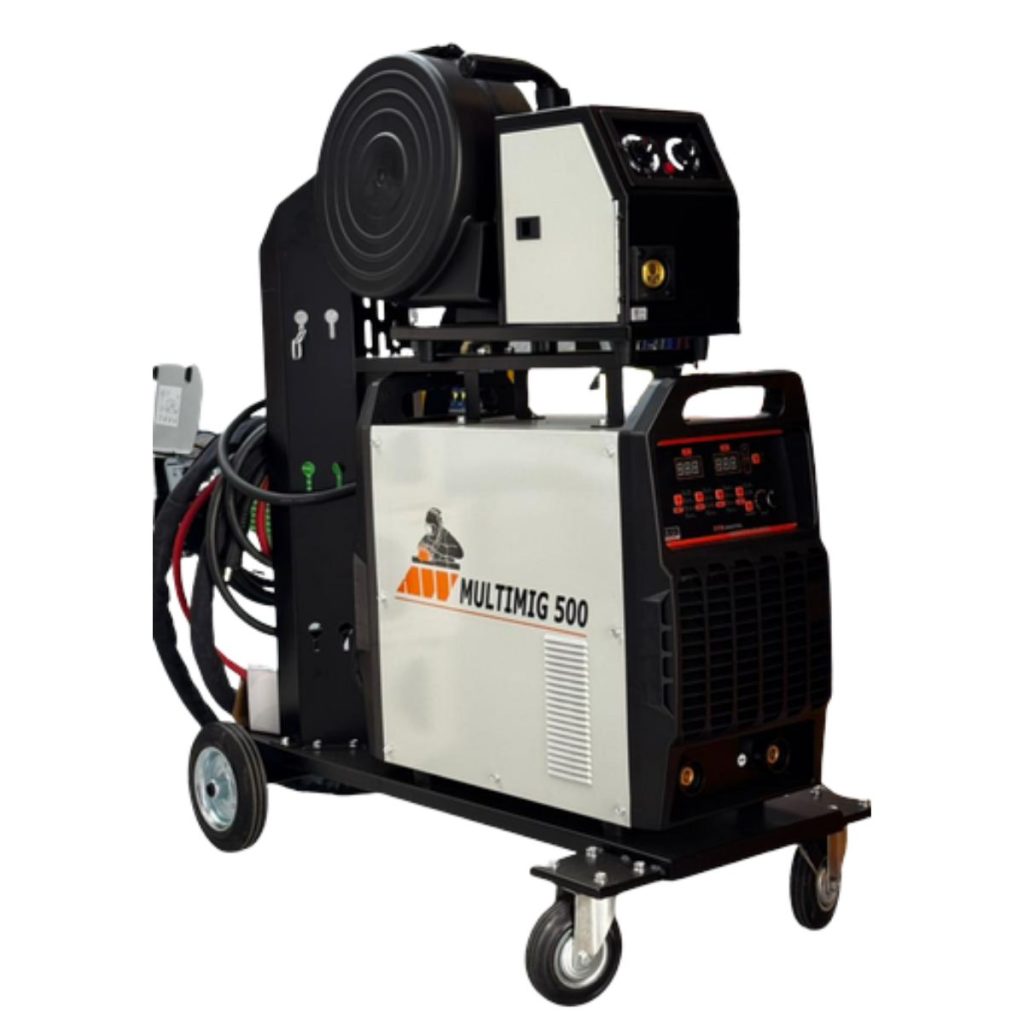

The DABU MIG-500 ships as shown in the main product photo. It has a power source with the wire feeder mounted on a wheeled trolley. Have a qualified electrician confirm that your industrial supply suits this three-phase machine before installation. The machine carries a 12-month warranty for manufacturing faults affecting electrical components and internal assemblies.
Compare this 500A industrial MIG welder
For a lower-output option than this 500A industrial MIG welder, see the DABU MIG-350. You can also browse all MIG welding machines. For background on the process, see this overview of gas metal arc welding. Amalgum Welding Shop lists this machine with a full Specifications tab and a downloadable spec sheet. The price shown includes VAT. Read the full Specifications tab on this page for every listed value. Use the product enquiry form on this page for quotes. Alternatively, contact Amalgum Welding Shop to confirm availability before ordering.
| Welding Process | MIG / MAG, Stick / ARC / MMA, Multi-Process |
| Input voltage | Three-phase AC 380 V +/-15% |
| Input power | 13.8 kW |
| MIG current range | 40-500 A |
| MMA current range | 20-500 A |
| Rated duty cycle | 100% at 387 A (sheet stated) |
| Wire diameter | 0.8-1.6 mm |
| Efficiency | 85% |
| Protection degree | IP21S |
| Weight | 35 kg |
| Dimensions | 670 x 330 x 565 mm |
- 40KD MIG torch with 3 m cable
- 500 A electrode holder
- 500 A earth clamp
- 3 m + 3 m, 50 mm2 cable
- Air regulator
This machine carries a 12-month warranty for manufacturing faults affecting electrical components and internal assemblies. Contact Amalgum Welding Shop before a return for assessment. Your rights under applicable consumer law still apply.
Related products
More from this category
Review each product page for its current price, availability, and purchasing options.
Common questions
Before you buy.
What electrical supply does the DABU MIG-500 use?
The DABU MIG-500 is a three-phase machine with AC 380V +/-15% input and 13.8kW input power. Arrange installation with a qualified electrician who can confirm the right industrial supply for your site.
What welding processes does it support?
The DABU MIG-500 is a MIG/MMA inverter welding machine, giving you a 40-500A MIG range and a 20-500A MMA range.
What does 100% duty cycle at 387A mean?
The supplied specification states a 100% duty cycle at 387A, supporting sustained industrial welding work at that output.
Which wire sizes can it use?
The DABU MIG-500 is specified for 0.8mm to 1.6mm welding wire.
What controls are included?
The machine includes inductance adjustment, 2T/4T trigger modes, burn-back, post-gas and synergic control.
What is included with the machine?
The listed package includes a 40KD MIG torch with a 3m cable, 500A electrode holder, 500A earth clamp, two 3m 50mm2 cables and an air regulator.
What warranty applies?
This machine carries a 12-month warranty for manufacturing faults affecting electrical components and internal assemblies. Contact Amalgum Welding Shop before a return for assessment.
Ready when the numbers fit
DABU MIG-500 Industrial MIG/MMA Welder
Review the confirmed specification, then add it to your cart or ask us about the job before deciding.
Standard delivery across South Africa takes 3-5 working days. Welding machines may need special courier handling; we confirm any adjusted charge or timeframe before you pay.
R31,625.00 incl. Vat
Not sure this is the right one?
WhatsApp us the job and we'll tell you — including when a different product fits better.
