Pulse MIG and synergic control
Use the digital inverter interface with the sheet-stated Pulse MIG technology and synergic control.
DABU 225 Pulse MIG Welder
220A · 60% duty · 220V
220V digital inverter welding machine with Pulse MIG, CO2/MIG, TIG and MMA processes, synergic control, an internal wire feeder and a 30-220A output range.
R6785,00 incl. Vat
In stock
Output range
30-220 A
Rated duty cycle
60%
Rated input
220 V +/-10%
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Output range 30-220 A
The supplied sheets list an output-current range from 30A to 220A.
Rated duty cycle 60%
The sheets state a 60% duty cycle but do not state the reference amperage or test conditions.
Rated input 220 V +/-10%
Rated input is AC 220V +/-10%, 50/60Hz, with 7.1kVA rated input power.
Spool capacity 5 kg / 15 kg
The internal wire feeder is listed for both 5kg and 15kg wire spools.
Wire sizes 0.6-1.0 mm
Listed diameters are 0.6mm, 0.8mm, 0.9mm and 1.0mm.
Machine weight 17.5 kg
The sheet lists the machine weight as 17.5kg.
Why this machine
Multiple listed processes
The supplied process line lists CO2/MIG, TIG and MMA for one workshop power source.
Two spool capacities
The internal feeder accepts the listed 5kg and 15kg spool formats.
Pulse MIG control for workshop welding
The DABU 225 combines a 30-220A output range with Pulse MIG technology, digital inverter controls and synergic control. The supplied sheets also list CO2/MIG, TIG and MMA processes.
Internal feeder for 5kg and 15kg spools
The internal wire feeder accepts 5kg and 15kg spools. Listed wire diameters are 0.6mm, 0.8mm, 0.9mm and 1.0mm, with an MB15 torch type specified.
Check the setup before ordering

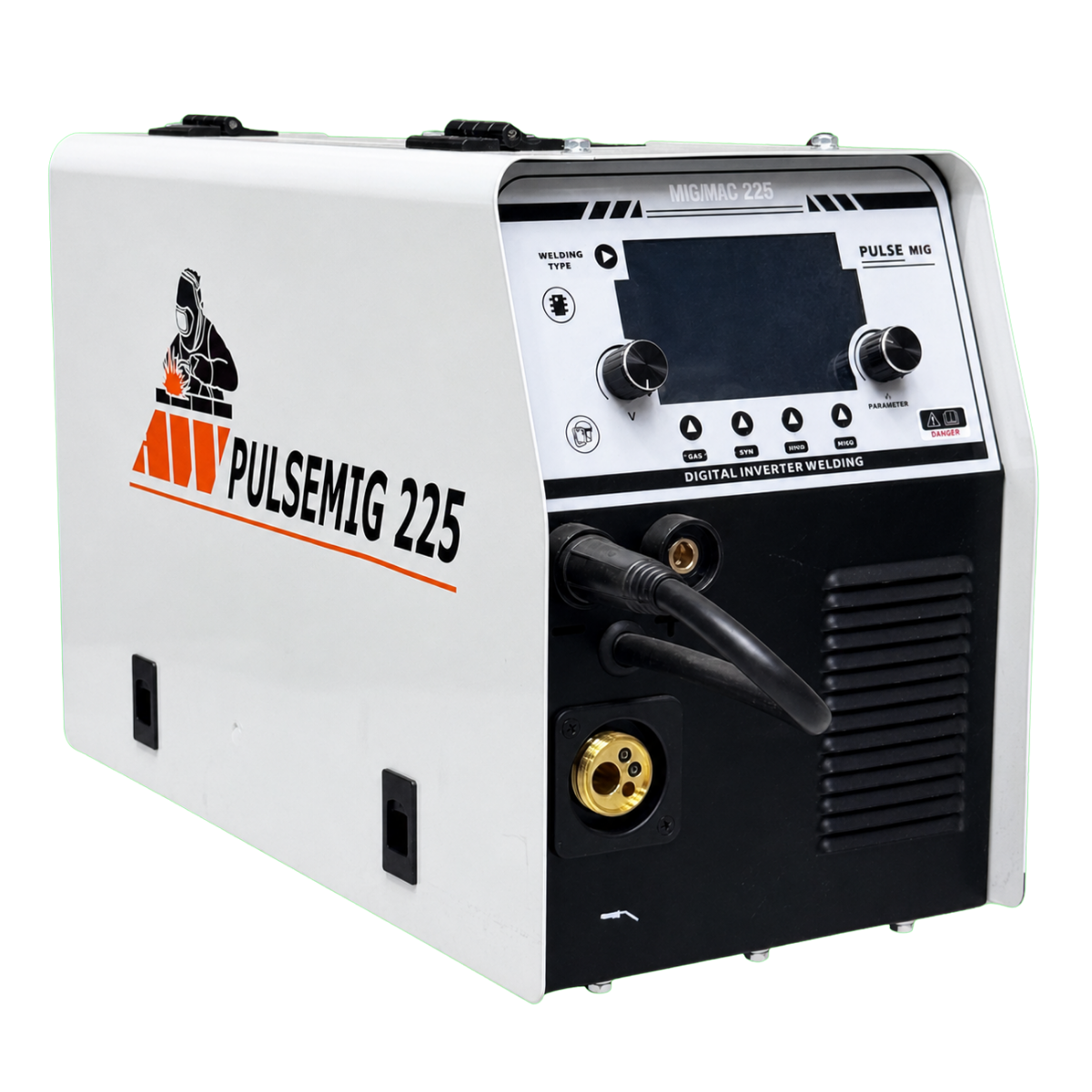

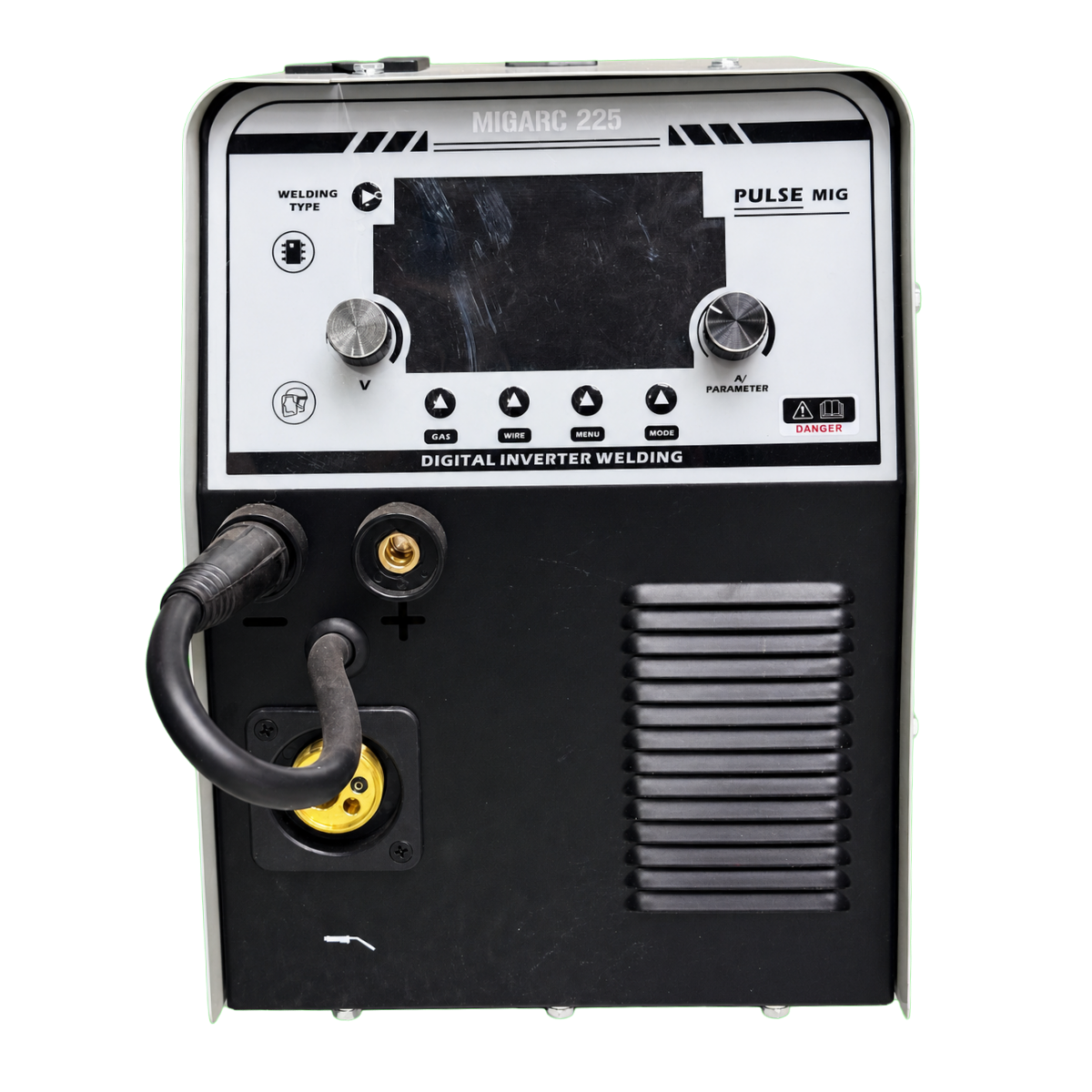

The machine artwork is marked MIGARC 225 and PULSEMIG 225 while the supplied document title and item record use DABU 225. Gasless MIG, TIG start method, aluminium capability and package contents are not confirmed. Ask Amalgum to confirm the exact setup for your work.
| Welding Process | MIG / MAG, TIG, Stick / ARC / MMA, Multi-Process |
| Input Voltage | 220V |
| Output Amperage | 220A |
| Torch Family | MB15 |
| Rated input frequency | 50/60 Hz |
| Rated input power | 7.1 kVA |
| Output current range | 30-220 A |
| Rated duty cycle | 60% (reference amperage not stated) |
| No-load voltage | 56 V (older supplied sheet) |
| Wire size | 0.6 / 0.8 / 0.9 / 1.0 mm |
| Electrode size | 2.0 / 2.5 / 3.2 mm |
| Wire feeder | Internal |
| Spool size | 5 kg / 15 kg |
| Weight | 17.5 kg |
| Dimensions | 480 x 180 x 350 mm |
The supplied DABU 225 sheets state a one-year warranty. Exact coverage, exclusions, remedies, transport responsibilities and return terms have not yet been confirmed for this product. Ask Amalgum to confirm the written terms before purchase. Your rights under applicable consumer law still apply.
Related products
More from this category
Review each product page for its current price, availability, and purchasing options.
Common questions
Before you buy.
What power supply does the DABU 225 need?
The supplied sheets rate it for AC 220V +/-10% at 50/60Hz with 7.1kVA rated input power. They do not specify the plug, breaker or installation requirements. Ask a qualified electrician to confirm that your supply is suitable.
Which welding processes are confirmed?
The sheet lists CO2/MIG, TIG and MMA, and separately identifies Pulse MIG technology. The TIG start method is not stated.
Can the DABU 225 weld gasless MIG or aluminium?
Neither gasless MIG nor aluminium capability is confirmed on the supplied sheets. Ask Amalgum to verify the exact wire, drive-roll, torch and gas setup required before ordering for either application.
Which wire and spool sizes does it accept?
The sheets list 0.6mm, 0.8mm, 0.9mm and 1.0mm wire, an internal feeder, and 5kg or 15kg spools. Confirm the fitted feed components for your chosen wire before ordering.
What does the 60% duty cycle mean for this machine?
The supplied sheets state a 60% rated duty cycle but do not state the reference amperage or test conditions. We therefore do not present it as 60% at the full 220A output.
What comes in the box?
The package contents are not listed on either supplied sheet. The specification names an MB15 torch type, but that does not prove which torch, cables, regulator or accessories are included. Ask Amalgum to confirm the supplied package.
Why do the names DABU 225, MIGARC 225 and PULSEMIG 225 appear?
The supplied document title and item record use DABU 225, while the machine artwork is marked MIGARC 225 on the front and PULSEMIG 225 on the side. The item code is 6-1001193. Confirm against that code when ordering.
What warranty applies?
The product sheets state a one-year warranty. The exact coverage, exclusions, claim process and return terms still need to be confirmed for this product before purchase.
Ready when the numbers fit
DABU 225 Pulse MIG Welder
Review the confirmed specification, then add it to your quote basket or ask us about the job before deciding.
Delivery charges depend on the order and destination. Gas orders and delivered orders below R2,000 attract transport charges; collection can be arranged as an alternative.
R6785,00 incl. Vat
Not sure this is the right one?
WhatsApp us the job and we'll tell you — including when a different product fits better.
