Four confirmed processes
Move between MIG/MAG, flux-cored gasless MIG, MMA and scratch-lift TIG in one portable power source.

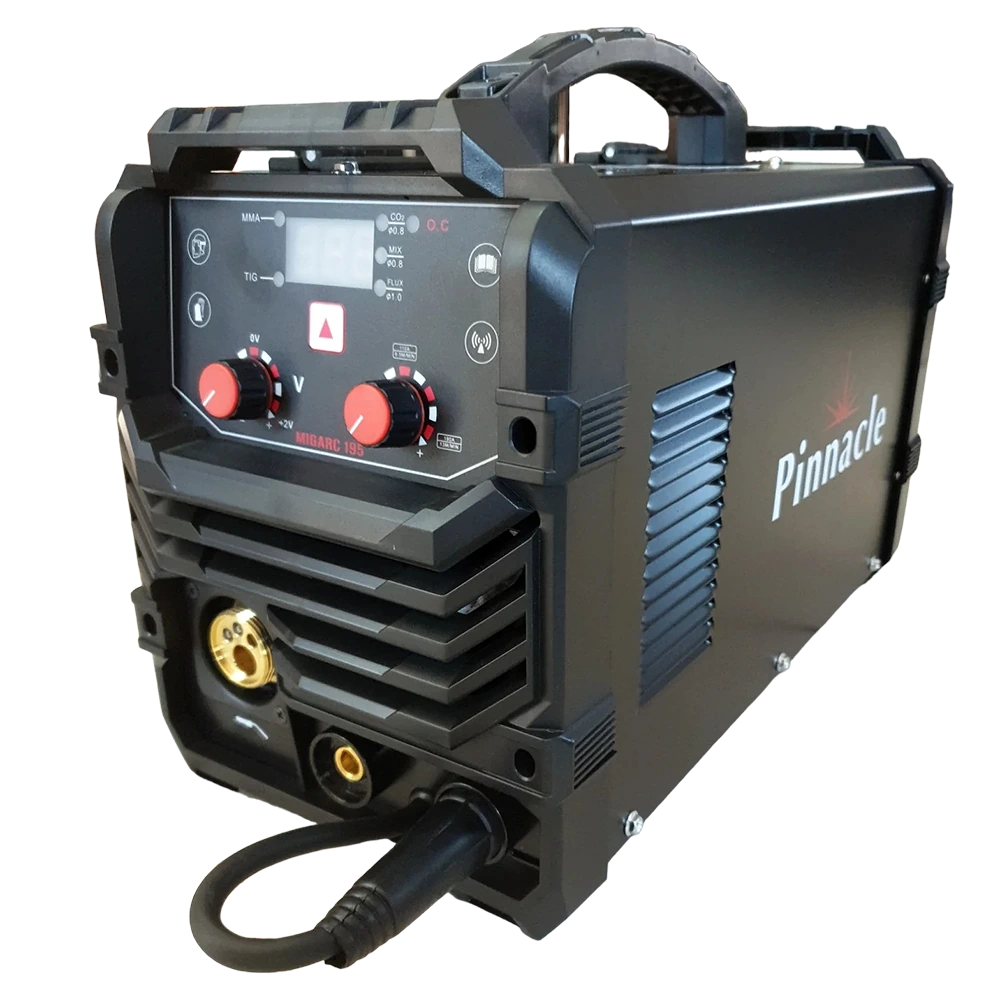

Pinnacle MIGARC 195
190A · 40% duty · 220V
Portable 220V inverter for MIG, gasless MIG, MMA and scratch-lift TIG welding, with a 30-190A output range, digital display and burn-back control. Supplied with an MB15 MIG torch and earth cable.
R4427,50 incl. Vat
In stock
12-month warrantyCovers manufacturing faults in the electrical components and internal assemblies.
7-day unused returnsLet us know within 7 days of receiving it. Original condition and packaging required.
Output range
30-190 A
Rated duty cycle
40%
Carry weight
10 kg
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Output range 30-190 A
The confirmed welding-current range runs from 30A to 190A.
Rated duty cycle 40%
The supplied sheet rates the machine at a 40% duty cycle. Actual working time depends on output and operating conditions.
Carry weight 10 kg
A 10kg machine body keeps the power source portable between the bench and the job.
Rated input 220 V +/-10%
Rated for 220V input with a +/-10% tolerance at 50/60Hz.
Wire sizes 0.6 / 0.8 / 0.9 mm
The confirmed wire range covers 0.6mm, 0.8mm and 0.9mm wire.
Electrode sizes 2.0 / 2.5 / 3.2 mm
For MMA welding, the sheet lists 2.0mm, 2.5mm and 3.2mm electrodes.
Why this machine
Controls you can read
The digital display, voltage and amperage controls, and burn-back control make the setup visible at the front panel.
The core MIG kit is included
The package includes the inverter power source, an MB15 MIG torch and an earth cable.
Portable multi-process control
The MIGARC 195 combines MIG/MAG, flux-cored gasless MIG, MMA and owner-confirmed scratch-lift TIG welding. Its 30-190A range, digital display and burn-back control give the operator a clear setup for workshop, repair and hobbyist welding.
Choose the consumable for the job
The machine accepts 0.6, 0.8 and 0.9mm welding wire, plus 2.0, 2.5 and 3.2mm MMA electrodes. The supplied MB15 torch covers the MIG side of the package.
Scratch-lift TIG capability
Amalgum has confirmed scratch-lift TIG welding support. The TIG torch and required TIG accessories are not included and must be ordered separately.
| Welding Process | MIG / MAG, Flux-Cored / Gasless MIG, TIG, Stick / ARC / MMA, Multi-Process |
| Input Voltage | 220V |
| Application Level | DIY / Home Workshop |
| Torch Family | MB15 |
| Start Method | Lift TIG |
| TIG start | Scratch-lift TIG |
| Rated frequency | 50/60 Hz |
| Output no-load voltage | 56 V |
| Welding current range | 30-190 A |
| Rated duty cycle | 40% |
| Rated power capacity | 7.1 kVA |
| Wire size | 0.6 / 0.8 / 0.9 mm |
| Electrode size | 2.0 / 2.5 / 3.2 mm |
| Weight | 10 kg |
| Dimensions | 505 x 280 x 375 mm |
- Inverter power source
- MB15 MIG torch
- Earth cable
The MIGARC 195 comes with a 12-month warranty against manufacturing faults in the electrical components and internal assemblies. Need to return it? Let us know within 7 days of receiving the machine. It must be unused, in its original condition and in the original packaging. If the machine develops a fault, contact us so we can assess it under the warranty. Please speak to Amalgum before sending anything back. A 10% handling charge applies to credits where the goods were correctly supplied and invoiced. Your rights under applicable consumer law still apply.
Related products
More from this category
Review each product page for its current price, availability, and purchasing options.
Common questions
Before you buy.
Which welding processes are confirmed?
MIG/MAG, flux-cored gasless MIG, MMA and scratch-lift TIG welding are confirmed.
Does the MIGARC 195 support LIFT TIG?
Yes. The MIGARC 195 supports scratch-lift TIG welding. The TIG torch and required TIG accessories are not included and must be ordered separately.
What comes in the box?
The package lists the inverter power source, an MB15 MIG torch and an earth cable.
Which wire and electrodes can it use?
The listed wire sizes are 0.6mm, 0.8mm and 0.9mm. The listed MMA electrode sizes are 2.0mm, 2.5mm and 3.2mm.
How will delivery charges work?
Delivery charges depend on the order and destination. Gas orders and delivered orders below R2,000 attract transport charges; collection can be arranged as an alternative.
What warranty and returns apply?
The MIGARC 195 comes with a 12-month warranty against manufacturing faults in the electrical components and internal assemblies. Need to return it? Let us know within 7 days of receiving the machine. It must be unused, in its original condition and in the original packaging. If the machine develops a fault, contact us so we can assess it under the warranty. Please speak to Amalgum before sending anything back.
Ready when the numbers fit
Pinnacle MIGARC 195
Review the confirmed specification, then add it to your quote basket or ask us about the job before deciding.
Delivery charges depend on the order and destination. Gas orders and delivered orders below R2,000 attract transport charges; collection can be arranged as an alternative.
R4427,50 incl. Vat
Not sure this is the right one?
WhatsApp us the job and we'll tell you — including when a different product fits better.
