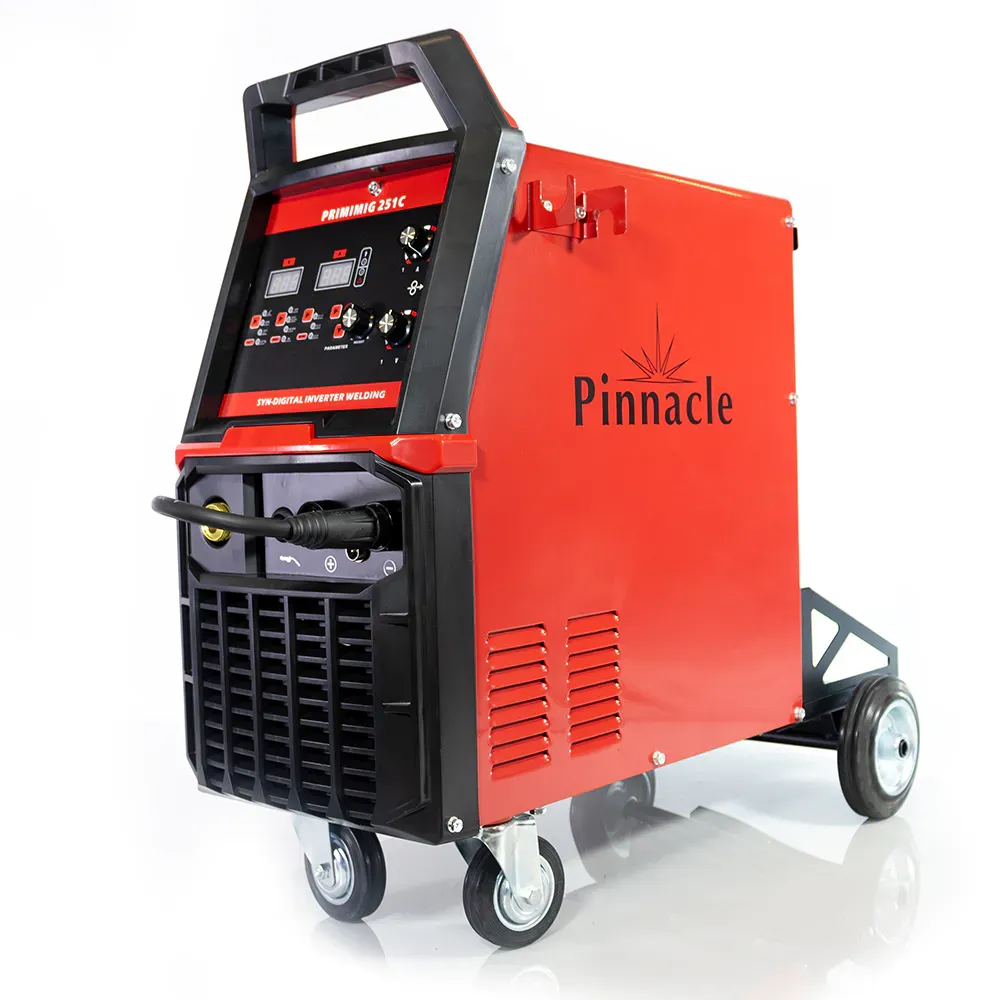

Pinnacle PRIMIMIG 251C 250 Amp Multi-Process MIG Welding Machine
R13,662.00 incl. Vat
250A MIG, gasless MIG, MMA and LIFT TIG inverter with digital voltage/current display, burn-back control, spot-welding control and over-temperature protection.
Description
Four welding processes up to 250A
The PRIMIMIG 251C combines gas-shielded MIG, gasless MIG, MMA and LIFT TIG in a 220V inverter platform. Its 20-250A output range supports a broad mix of workshop fabrication and repair work.
Digital control for repeatable setup
The supplied sheet lists a digital voltage/current display, burn-back control, arc-ending control and spot-welding functions. These controls help tune wire finishing and timed welds for the job.
Supplied for MIG setup

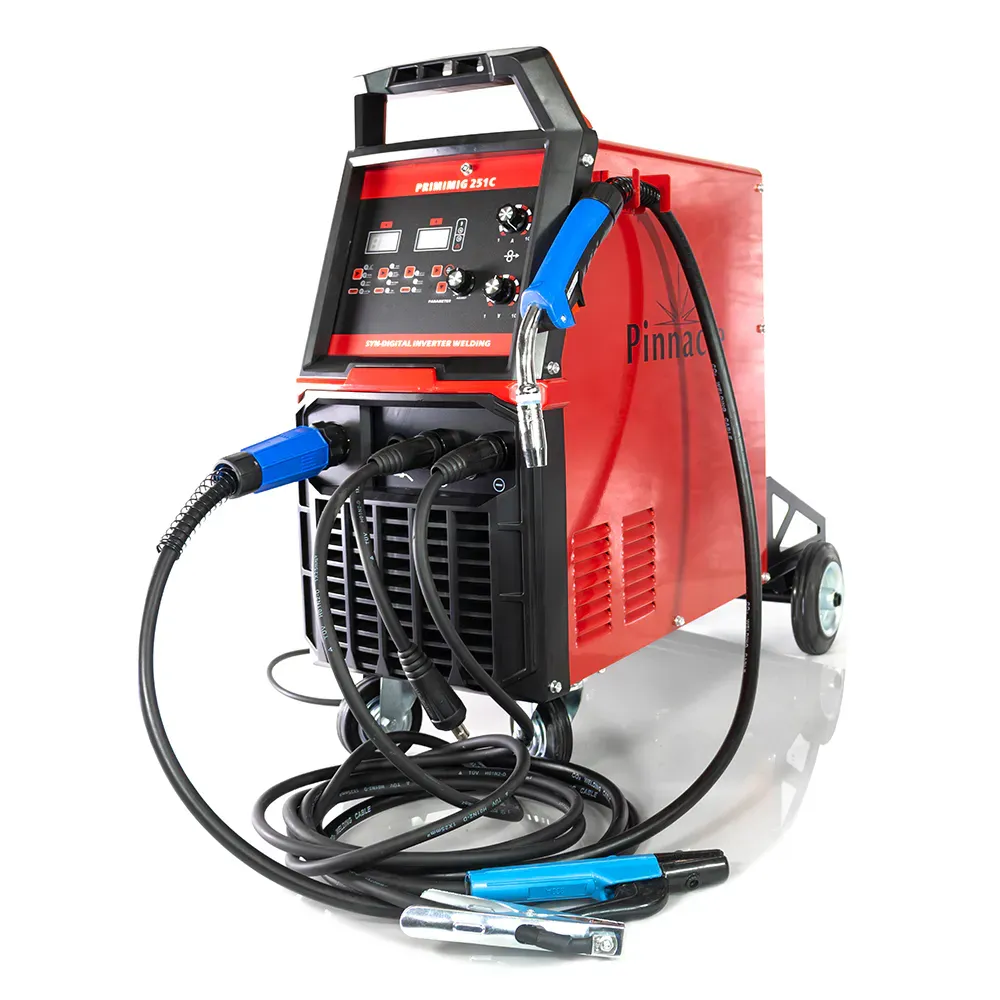

The package includes a 3m MB25 MIG torch, a 2m earth cable and an argon flowmeter. An electrode holder, TIG torch, gas cylinder, regulator details, welding wire and TIG consumables are not listed as included.
Confirm the exact model name
The source heading identifies the product as PRIMIMIG 251C, while the panel says MIG 251C and the chassis says MULTIMIG 251. Use item code 6-100120 to confirm the exact machine before purchase.
Additional information
| Welding Process | MIG / MAG, Flux-Cored / Gasless MIG, TIG, Stick / ARC / MMA, Multi-Process |
|---|---|
| Output Amperage | 250A |
| Start Method | Lift TIG |
| Rated input voltage | 220 V +/-10% |
| Rated frequency | 50/60 Hz |
| Rated input power capacity | MIG 8.4 kVA; MMA 9.5 kVA |
| Rated input current | MIG 38 A; MMA 43 A |
| No-load voltage | 52 V |
| Output current range | 20-250 A |
| Duty cycle | 60% at 40 C (reference amperage not stated) |
| Welding wire size | 0.6-1.2 mm |
| Welding electrode size | 2.0-4.0 mm |
| Weight | 20 kg |
| Dimensions | 622 x 280 x 450 mm |
