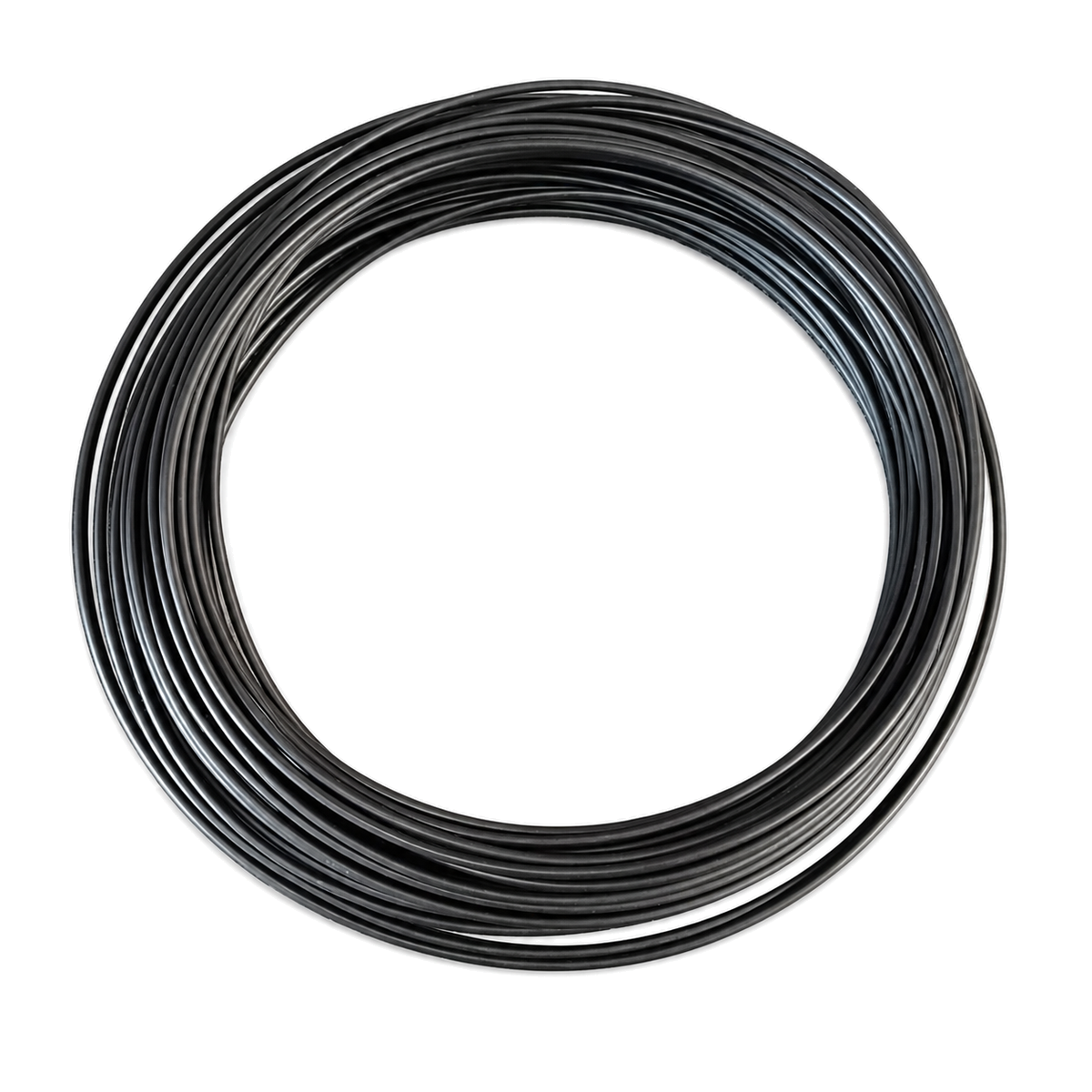

Graphite Teflon MIG Torch Liner – 4m

Description

Aluminium MIG wire is soft and grabs on a steel liner, causing feed stutter and birdnesting at the drive rolls — a graphite-Teflon liner runs low-friction to keep soft wire feeding smoothly all the way to the contact tip.

Key specs

– Graphite-Teflon liner, 4m length
– Colour-coded (red/black/yellow) by wire size range — check the colour against your wire diameter before fitting
– Confirm your torch fitting, liner outside diameter and trim length before ordering, since Teflon liners aren’t interchangeable across torch brands

Why not use a steel liner for aluminium wire?

Steel liners flex and coil under pressure, which shaves soft aluminium wire as it feeds and clogs the liner with fine metal dust. A smooth-bore Teflon liner avoids that shaving action, so the wire arrives at the contact tip round and unmarked.

Aluminium MIG liner FAQ

Can I use a Teflon liner with steel wire?

You can, but it’s not worth it — Teflon liners are built for soft wires like aluminium, and steel wire’s rougher, harder-tensile feed wears a Teflon liner out faster than it would a bronze or steel one.

Why is my aluminium wire jamming even with a Teflon liner?

Check drive roll tension first — too much pressure flattens soft aluminium wire and it jams regardless of liner type. Also confirm the liner is trimmed to length and not kinked inside the neck.

In stock and ready to ship from Amalgum Welding Shop. Add to cart and check out online.
