AC/DC TIG flexibility
Use DC TIG for steel and stainless work, or AC TIG for conventional aluminium applications.

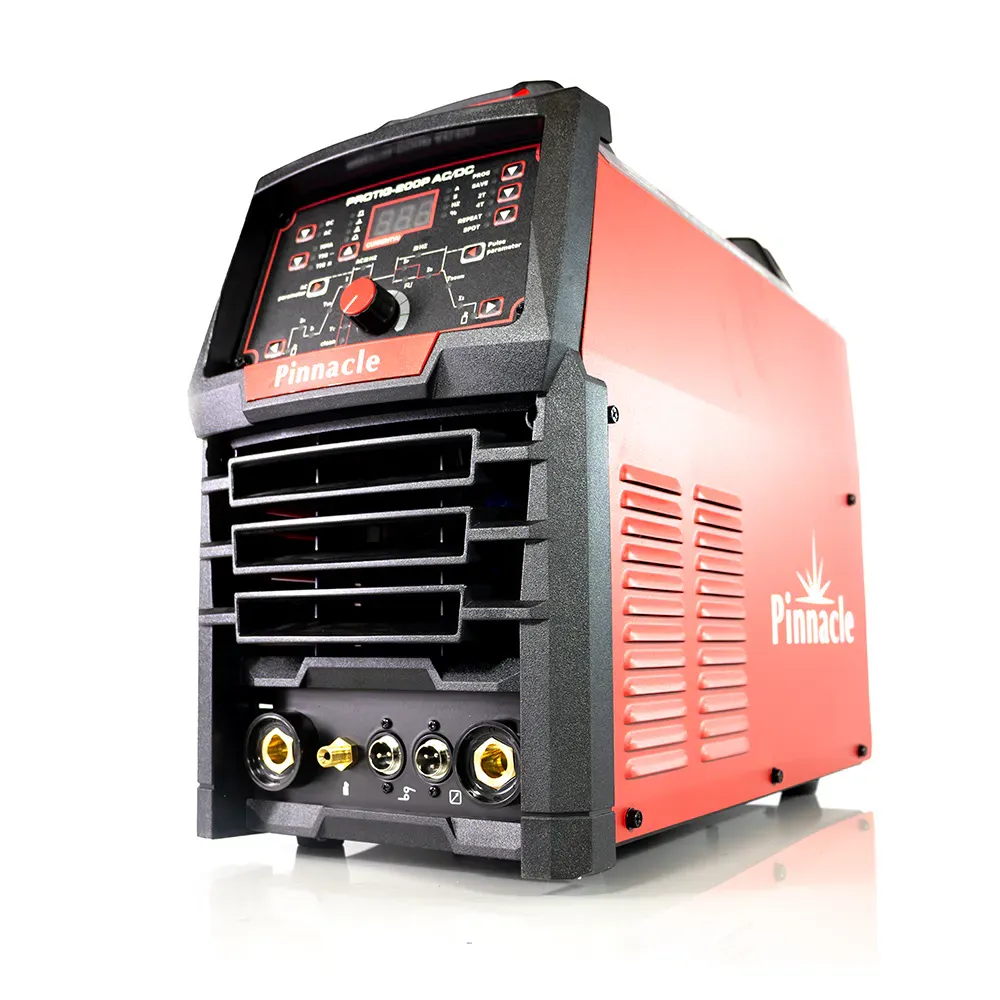

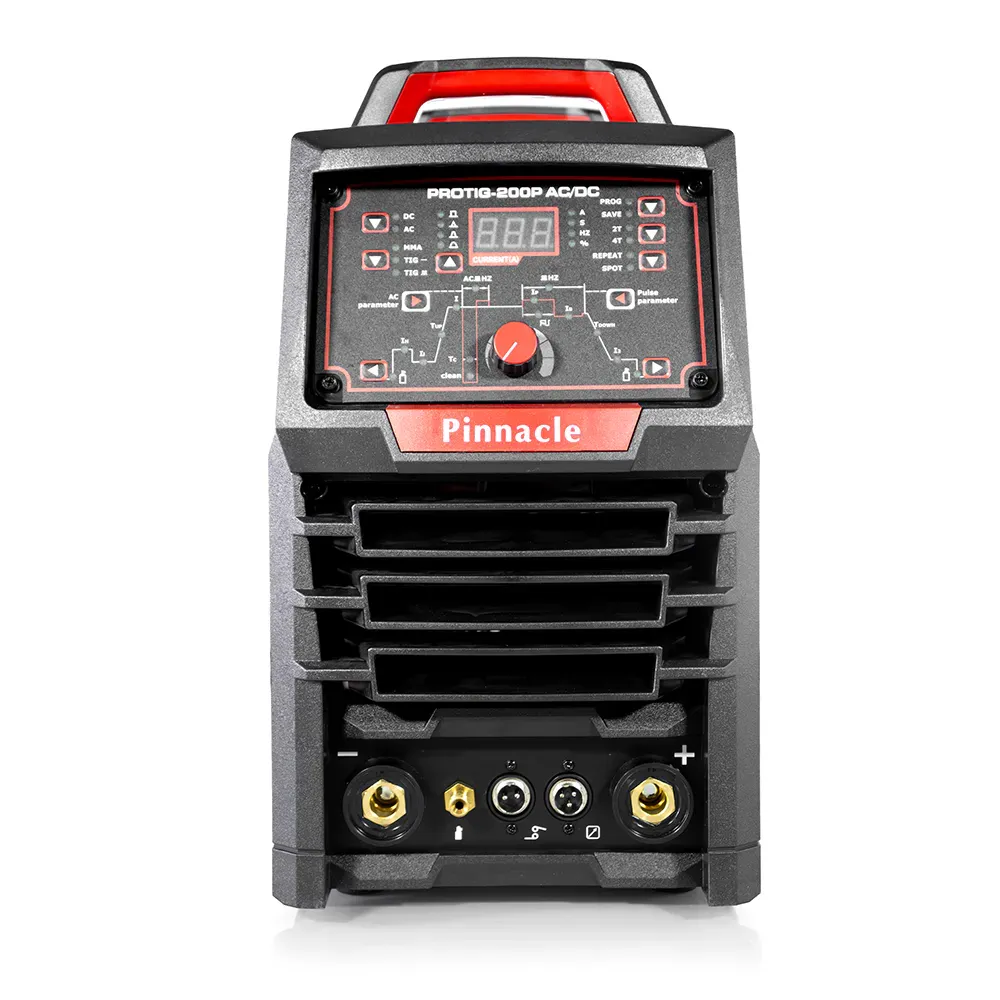

Pinnacle PROTIG 200P AC/DC
200A · 60% duty · 230V
200A AC/DC pulse TIG and MMA inverter with high-frequency arc starting, adjustable weld parameters, hot start, arc force and electrical protection.
R11 845,00
In stock
Output range
5-200 A
Current type
AC / DC
Duty cycle
60%
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Output range 5-200 A
The supplied technical table lists a 5A to 200A welding-current range.
Current type AC / DC
AC/DC TIG operation supports mild steel, stainless steel and aluminium applications.
Duty cycle 60%
The sheet states 60% but does not identify the reference amperage or test conditions.
Arc start High frequency
The technical table identifies HF arc starting.
Input voltage 230 V +/-15%*
The table states 230V +/-15%; a separate feature icon says 220V. Confirm the rating plate before installation.
Item code 6-PROT02
Use this item code to confirm the exact model and package.
Why this machine
Adjustable weld parameters
Set current and post-gas parameters to suit the material, joint and weld cycle.
Built-in protection
The sheet lists over-current, overheat and under-voltage protection.
AC/DC pulse TIG control up to 200A
The Pinnacle PROTIG 200P AC/DC covers TIG and MMA welding with a 5-200A output range. AC/DC operation supports a broader material range, while high-frequency arc starting helps initiate TIG welding without touching the tungsten to the workpiece.

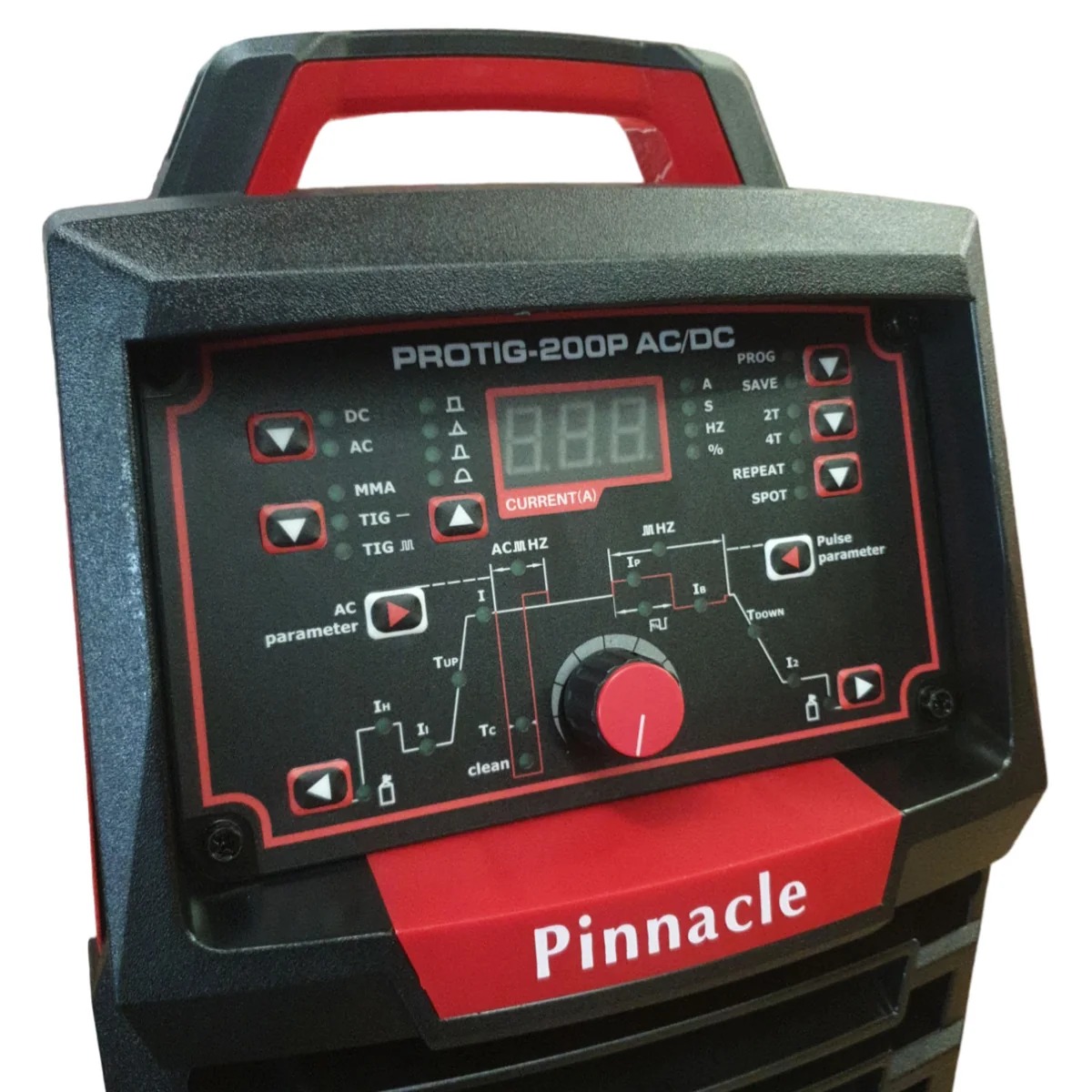

Adjust the weld cycle for the job
The supplied sheet lists current preset and adjustable post-gas functions, together with professional parameter adjustment. Built-in hot start and arc force support MMA operation.
Protection for workshop use
Over-current, overheat and under-voltage protection are listed. The sheet also states that a foot pedal can be fitted, but it is optional and is not shown in the included package.

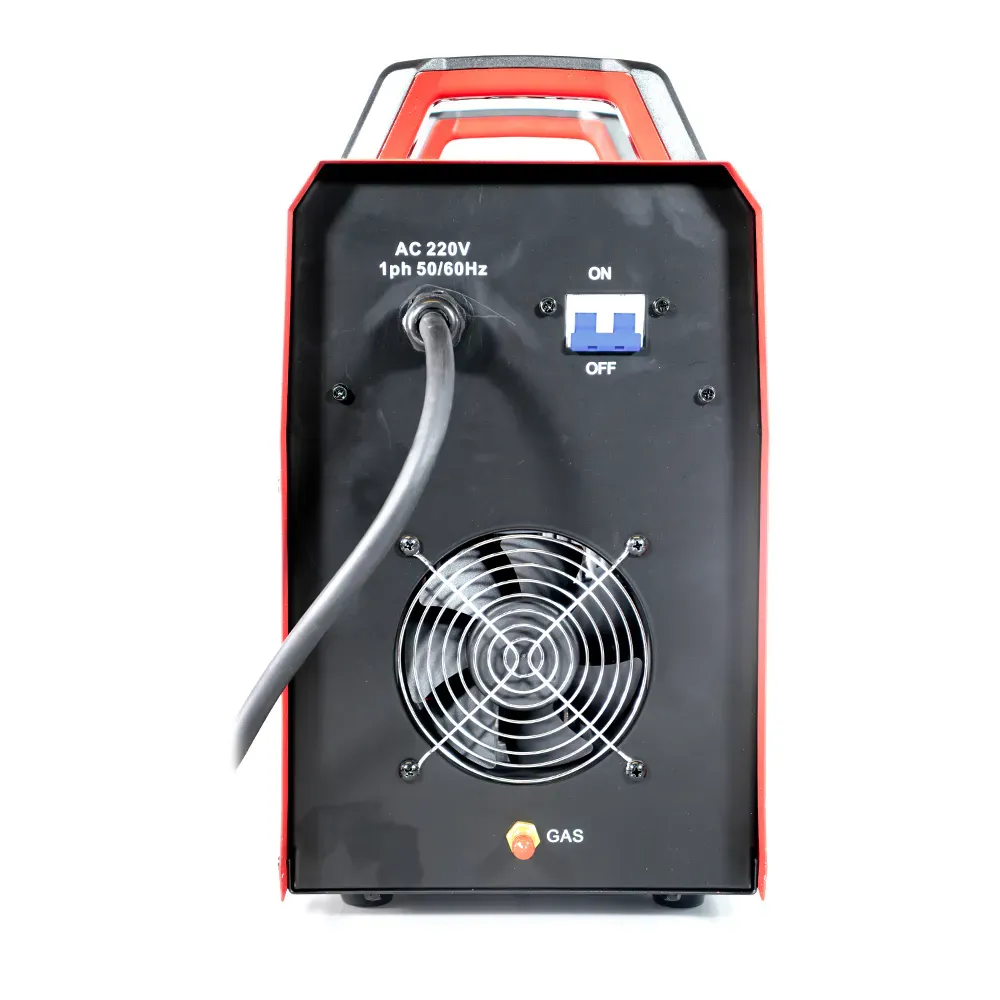

Confirm the input voltage before installation
The technical table states 230V +/-15%, while a feature icon says 220V. This listing uses the technical-table value provisionally; confirm the machine rating plate and workshop supply before installation.
| Welding Process | TIG, Stick / ARC / MMA, Multi-Process |
| Output Amperage | 200A |
| Material | Mild / Carbon Steel, Stainless Steel, Aluminium |
| Gas Requirement | Argon |
| Start Method | High Frequency (HF) |
| Current Type | AC / DC |
| Rated input voltage | 230 V +/-15% (technical table; 220V feature icon conflicts) |
| Rated frequency | 50/60 Hz |
| Rated input current | 28 A |
| Welding current range | 5-200 A |
| Rated duty cycle | 60% (reference amperage not stated) |
| Output no-load voltage | 68 V |
| Efficiency | 80% |
| Power factor | 0.73 |
| Insulation class | H |
| Protection class | IP21S |
| Electrode size | 1.6-4.0 mm |
- Inverter power source
- TIG torch
- Earth cable
The supplied PROTIG 200P AC/DC sheet does not state warranty or return terms. Exact coverage, exclusions, remedies, return conditions and transport responsibilities must be confirmed in writing before purchase. Your rights under applicable consumer law still apply.
Related products
More from this category
Review each product page for its current price, availability, and purchasing options.
Common questions
Before you buy.
Can the Pinnacle PROTIG 200P AC/DC weld aluminium?
Yes. Its AC TIG capability is intended for conventional aluminium TIG work. Confirm the correct tungsten, shielding gas and filler material for the job.
Does it support MMA welding?
Yes. The supplied sheet lists TIG and MMA processes, together with hot start and arc force functions.
Does it include a foot pedal?
No foot pedal is listed in the package. The sheet says the machine can be equipped with one, so compatibility and price must be confirmed separately.
Does it use 220V or 230V?
The supplied sheet conflicts: a feature icon says 220V, while the technical table states 230V +/-15%. This listing uses the table value provisionally. Confirm the rating plate and electrical installation before use.

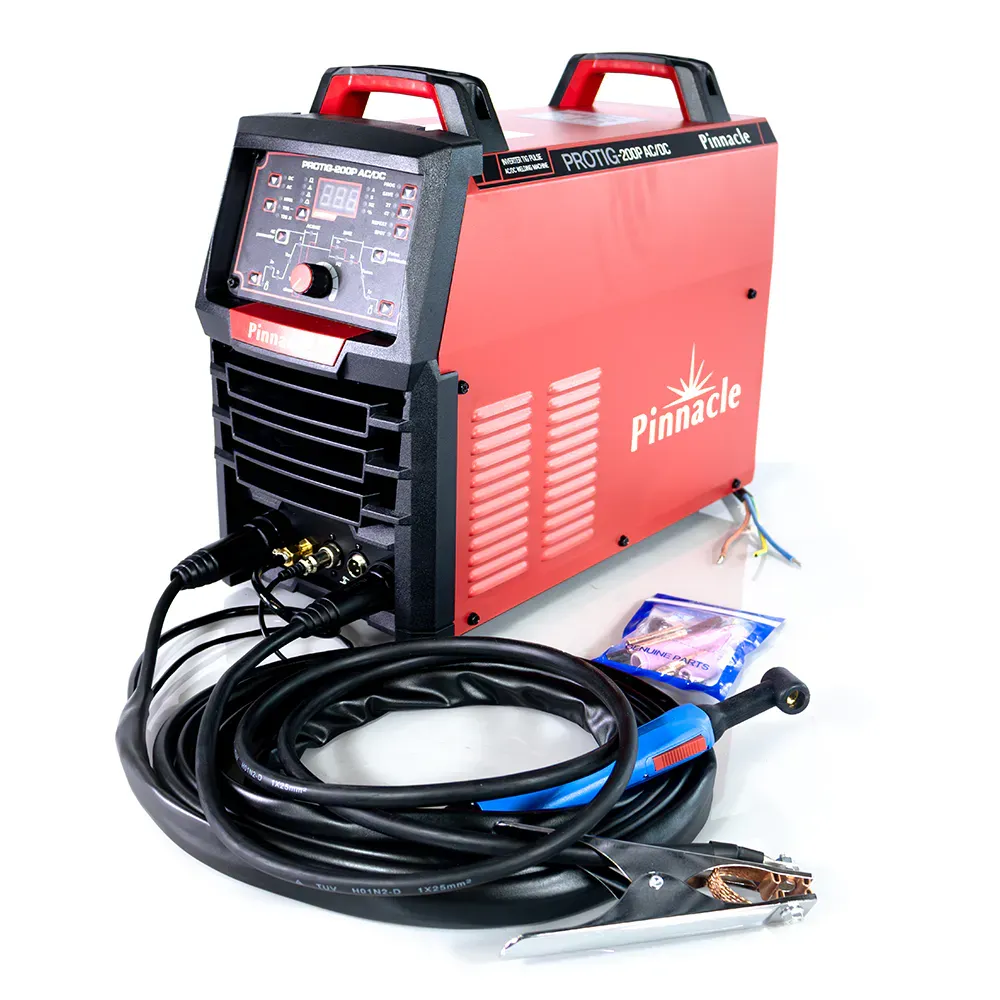

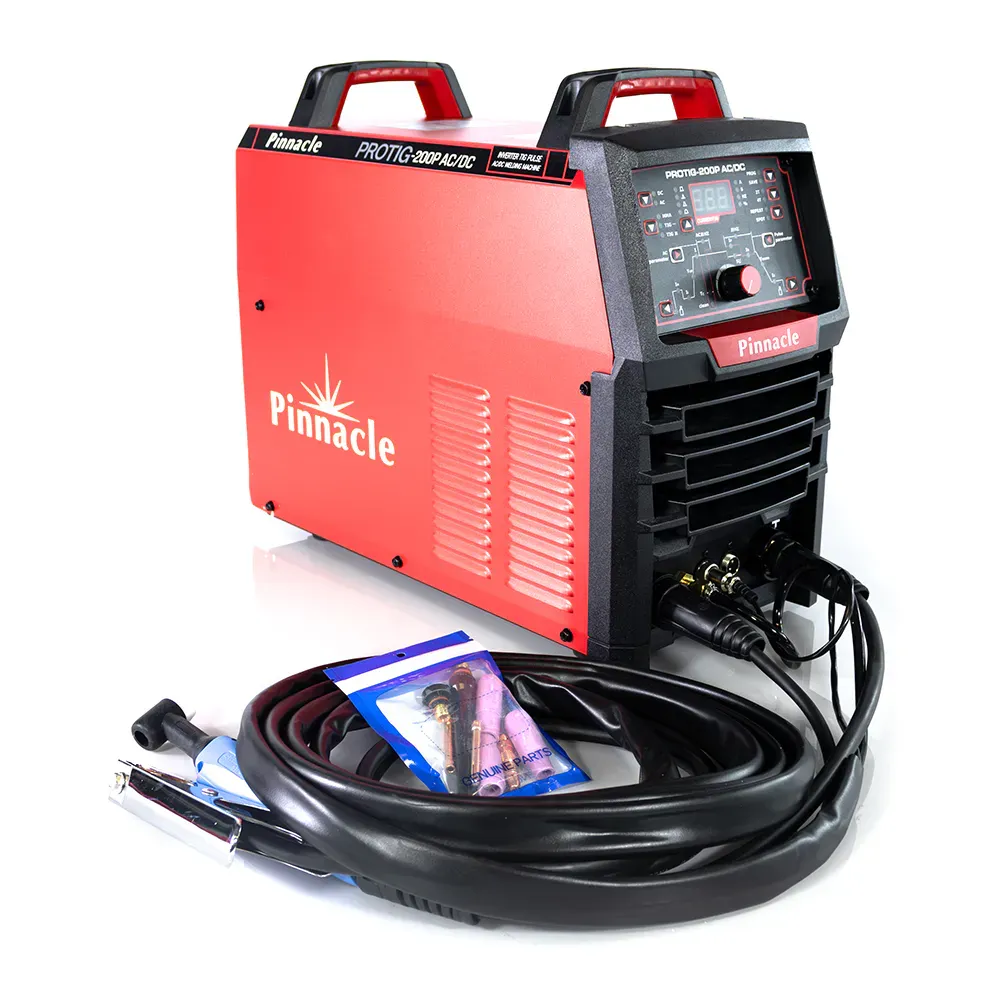

What comes in the package?
The supplied package list names the inverter power source, TIG torch and earth cable. Cable lengths, regulator, gas cylinder, tungsten and filler rods are not stated as included.
What does the 60% duty cycle mean here?
The sheet states a 60% rated duty cycle but does not provide the reference amperage or test conditions. It should not be read as 60% at the full 200A output without confirmation.
What warranty applies?
The supplied sheet does not state warranty or return terms. Ask Amalgum to confirm the written product-specific terms before purchase.
