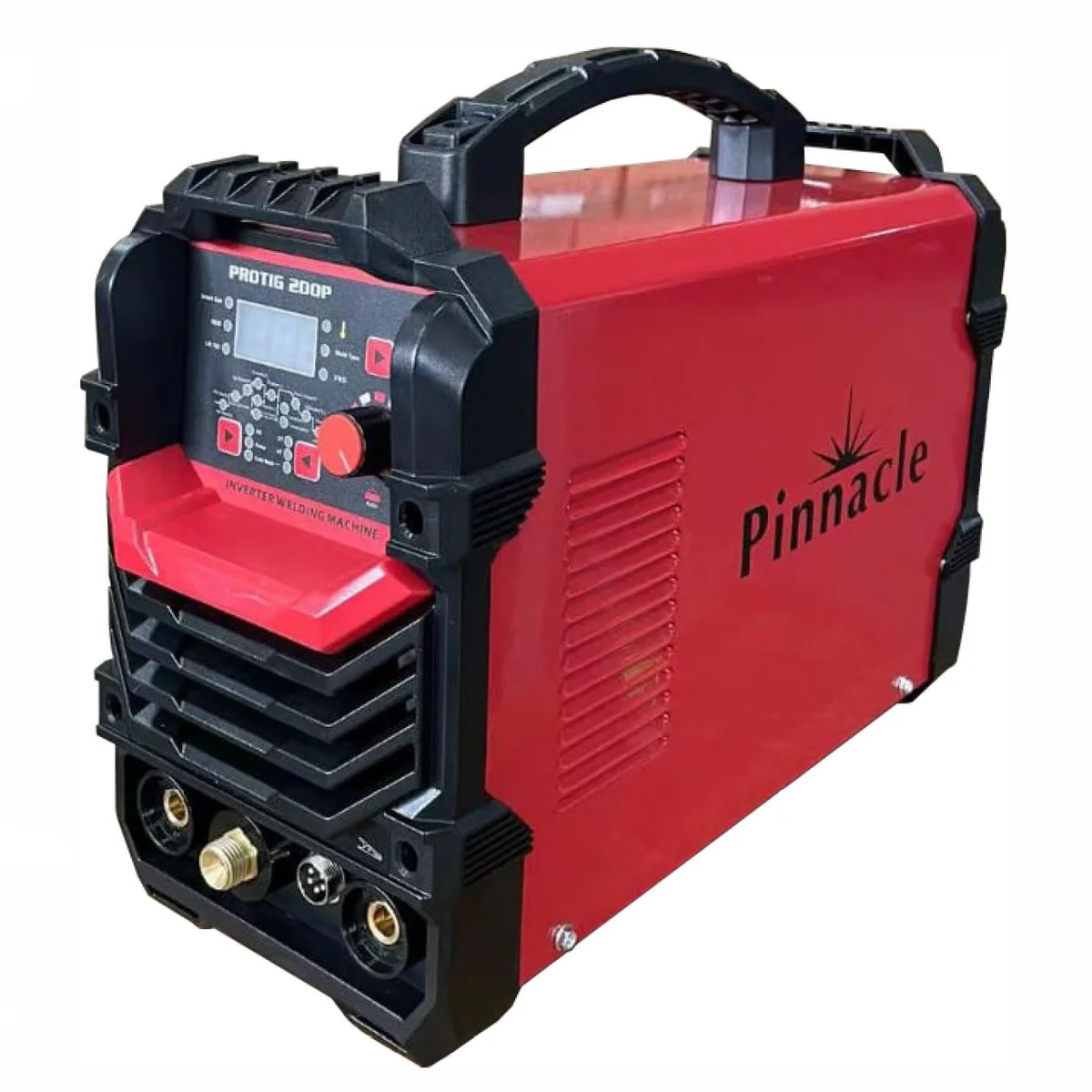

Pinnacle PROTIG 200P TIG Welding Machine
R4,705.00 incl. Vat
200A pulse TIG and MMA inverter with high-frequency arc starting, adjustable pulse controls, VRD, 2T/4T operation and electrical protection.
Description
Pulse TIG and MMA in one 200A inverter
The Pinnacle PROTIG 200P combines TIG and MMA welding in a 220V inverter. High-frequency arc starting initiates TIG welding without touching the tungsten to the workpiece, while adjustable pulse parameters help tune the weld cycle for the job.
Workshop-ready control and protection
The supplied sheet lists VRD, 2T/4T operation, professional parameter adjustment and protection against over-current, overheating and under-voltage. IGBT and MCU technology are also listed.
Optional foot-pedal capability
The machine can be equipped with a foot pedal, but the pedal is not listed in the supplied package and must be confirmed separately.
Confirm the TIG current range
The technical table states a TIG welding-current range of 100-200A. Because the unusually high 100A lower limit may be a source-sheet error, confirm the machine rating plate or current manual before relying on this range.
Additional information
| Welding Process | TIG, Stick / ARC / MMA, Multi-Process |
|---|---|
| Output Amperage | 200A |
| Gas Requirement | Argon |
| Start Method | High Frequency (HF) |
| Current Type | DC |
| Rated input voltage | 220 V +/-15% |
| Rated frequency | 50/60 Hz |
| Output no-load voltage | 12 V with VRD / 60 V without VRD |
| Rated input current | 35 A |
| Welding current range | MMA 20-160 A; TIG 100-200 A (confirm TIG lower limit) |
| Rated duty cycle | 60% (reference amperage not stated) |
| Efficiency | 85% |
| Power factor | 0.85 |
| Insulation class | F |
| Protection class | IP21S |
| Arc start | High frequency (HF) |
| MMA electrode size | 1.6-4.0 mm |
| TIG electrode size | 1.0-3.2 mm |
