DC pulse control
Use high-frequency DC TIG, pulse TIG and spot TIG modes for controlled steel and stainless work.

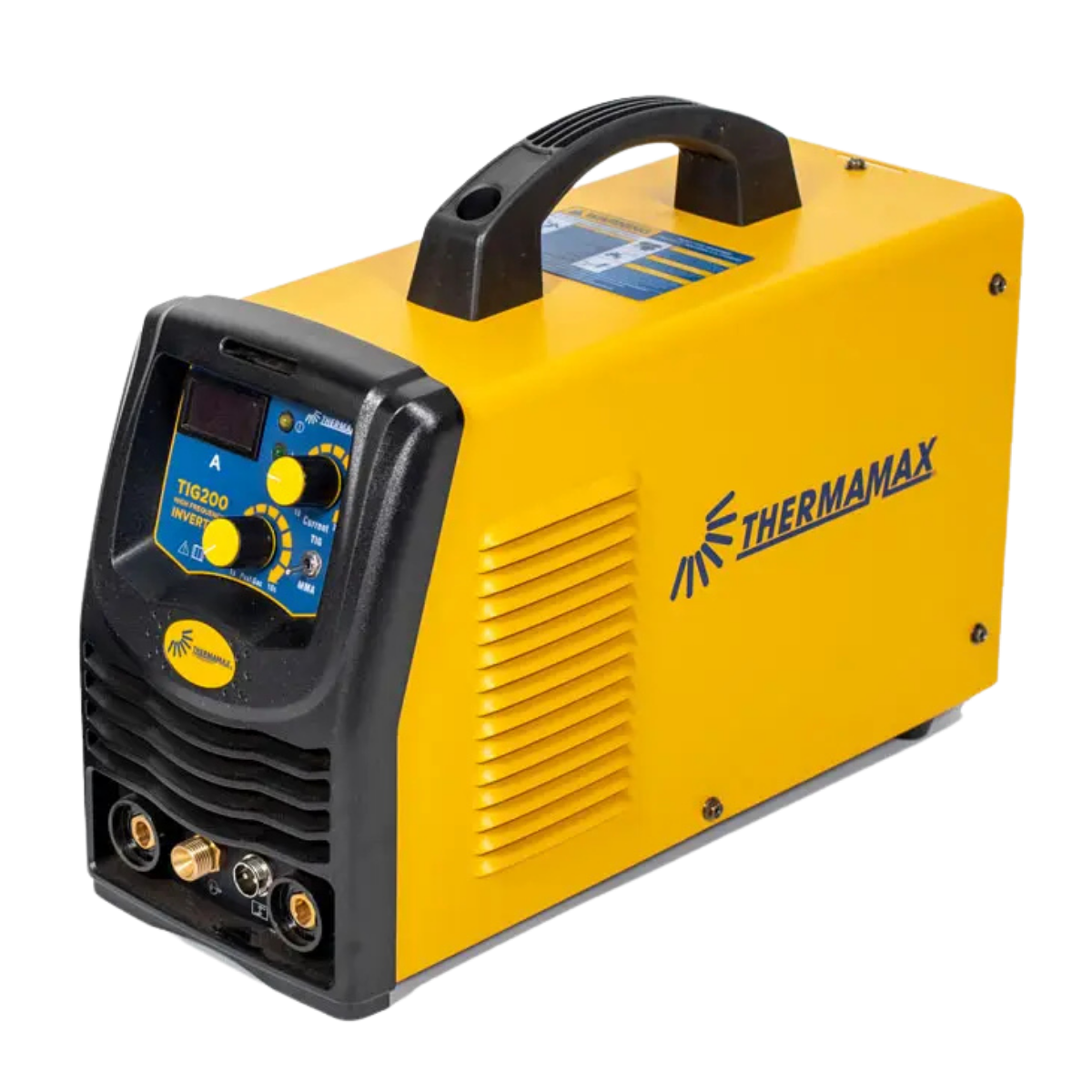

Thermamax Griffin TIG200P DC Pulse Welder
200A · 60% duty · 220V
Compact 220V DC pulse TIG and MMA inverter with high-frequency start, a 10-200A TIG range, 60% sheet-stated TIG duty cycle and a listed 6.13kg machine weight.
R12 063,50
In stock
TIG range
10-200 A
TIG duty cycle
60%
Machine weight
6.13 kg
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
TIG range 10-200 A
The current supplier list gives a 10-200A TIG current range.
TIG duty cycle 60%
The supplier document states 60% but does not identify the reference amperage.
Machine weight 6.13 kg
A 6.13kg listed machine weight supports bench-to-job portability.
Arc start High frequency
The current supplier document identifies high-frequency TIG starting.
No-load voltage 65 V DC
The listed no-load voltage is DC 65V.
Item code 31-020120-11
Use the item code to confirm the machine and kit when ordering.
Why this machine
Portable 6.13kg package
Move a compact TIG power source between the bench and the job more easily.
Core kit documented
The current supplier list names the torch, leads, gas hose, foot control and flowmeter.
Portable DC pulse TIG control
The Thermamax Griffin TIG200P combines high-frequency DC TIG, pulse TIG, spot TIG and MMA in a compact 6.13kg inverter. Its listed TIG range is 10-200A, with a 10-80A MMA range.
A documented working kit

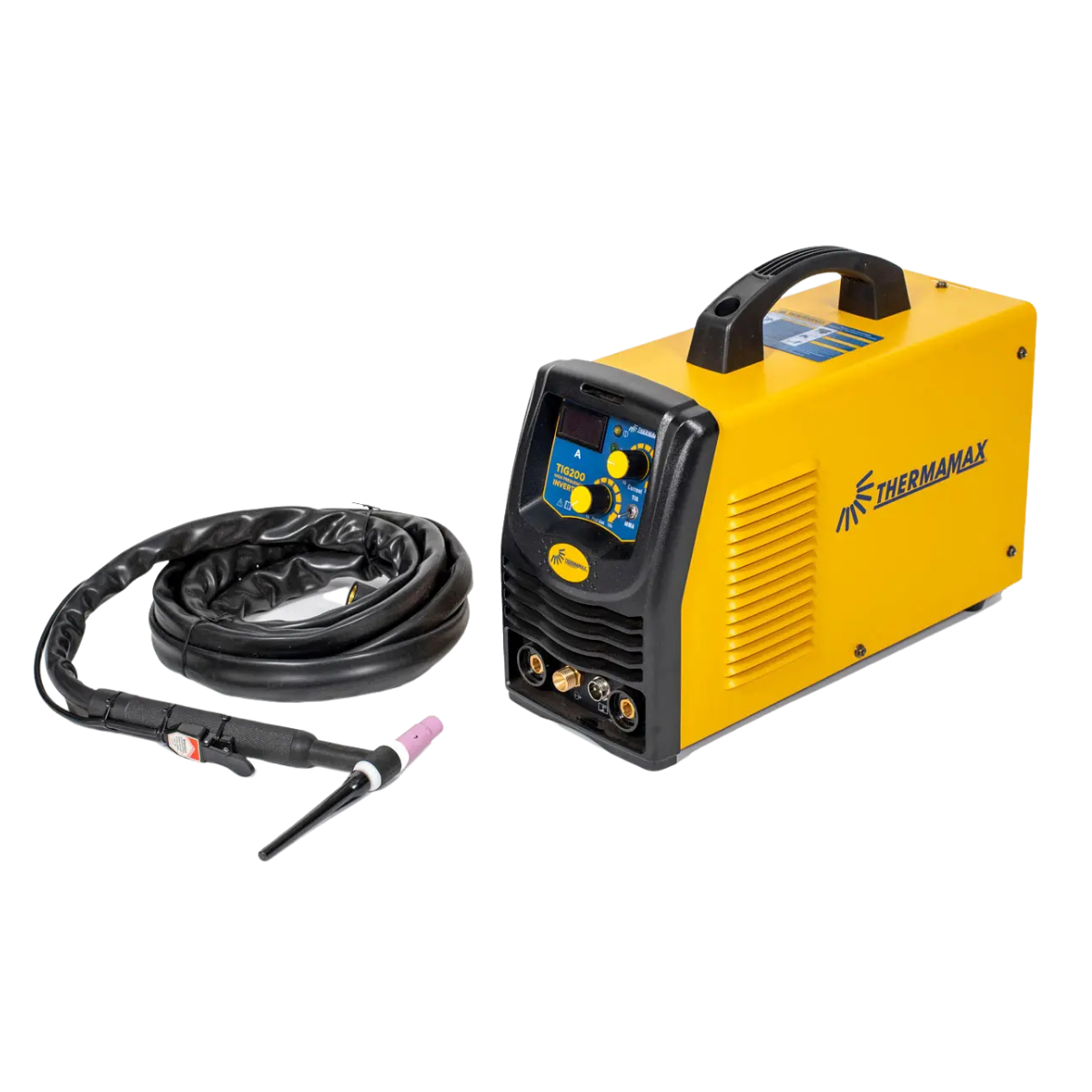

The current supplier list includes a 4m SR-26 TIG torch, 300A earth clamp, 5m 16mm cable, 3m gas hose, 200A electrode holder, foot control and Phoenix flowmeter.
Choose it for DC TIG work
This model suits steel and stainless-steel TIG work where portability matters. It is DC-only; choose the Thermamax Griffin PRO-TIG 200 AC/DC when conventional aluminium TIG capability is required.
| Welding Process | TIG, Stick / ARC / MMA, Multi-Process |
| Input Voltage | 220V |
| Output Amperage | 200A |
| Material | Mild / Carbon Steel, Stainless Steel |
| Torch Family | WP26 |
| Gas Requirement | Argon |
| Start Method | High Frequency (HF) |
| Current Type | DC |
| Application Level | Professional Workshop |
| Process modes | DC TIG / Pulse TIG / Spot TIG / MMA |
| TIG current range | 10-200 A |
| MMA current range | 10-80 A |
| TIG duty cycle | 60% (reference amperage not stated) |
| No-load voltage | DC 65 V |
| Dimensions | 365 x 135 x 277 mm |
| Weight | 6.13 kg |
- 4m SR-26 TIG torch
- 300A earth clamp
- 5m 16mm cable
- 3m gas hose
- 200A electrode holder
- Foot control
- Phoenix flowmeter
Warranty terms vary by product. The exact Thermamax TIG200P DC warranty period, coverage, exclusions, claim process and transport responsibilities must be confirmed with Amalgum before purchase. Your rights under applicable consumer law still apply.
Related products
More from this category
Review each product page for its current price, availability, and purchasing options.
Common questions
Before you buy.
Can the Thermamax TIG200P DC weld aluminium?
This is a DC-only TIG machine. For conventional aluminium TIG welding, choose an AC/DC TIG machine such as the Thermamax Griffin PRO-TIG 200 AC/DC.
Does it have high-frequency start and pulse TIG?
Yes. Current supplier information identifies high-frequency starting, DC pulse TIG and spot TIG.
What comes in the listed kit?
The 2026 supplier list names a 4m SR-26 TIG torch, 300A earth clamp, 5m 16mm cable, 3m gas hose, 200A electrode holder, foot control and Phoenix flowmeter.
Is an argon cylinder included?
No argon cylinder is listed in the package. Confirm the cylinder, gas, tungsten and filler requirements for your job before ordering.
What MMA output is listed?
The current supplier list states an MMA current range of 10-80A.
What does the 60% duty cycle mean here?
The supplier list states a 60% TIG duty cycle but does not state the reference amperage, so this listing does not present it as 60% at the full 200A output.
What power supply is required?
Current South African product records describe this as a 220V machine. Confirm the exact plug, circuit and electrical installation requirements with Amalgum and a qualified electrician.
What warranty applies?
The exact Amalgum warranty, exclusions, claim process and transport responsibilities still need to be confirmed for this product before purchase.
