Aluminium-capable AC TIG
Switch to AC TIG for the cleaning action required for conventional aluminium TIG welding.

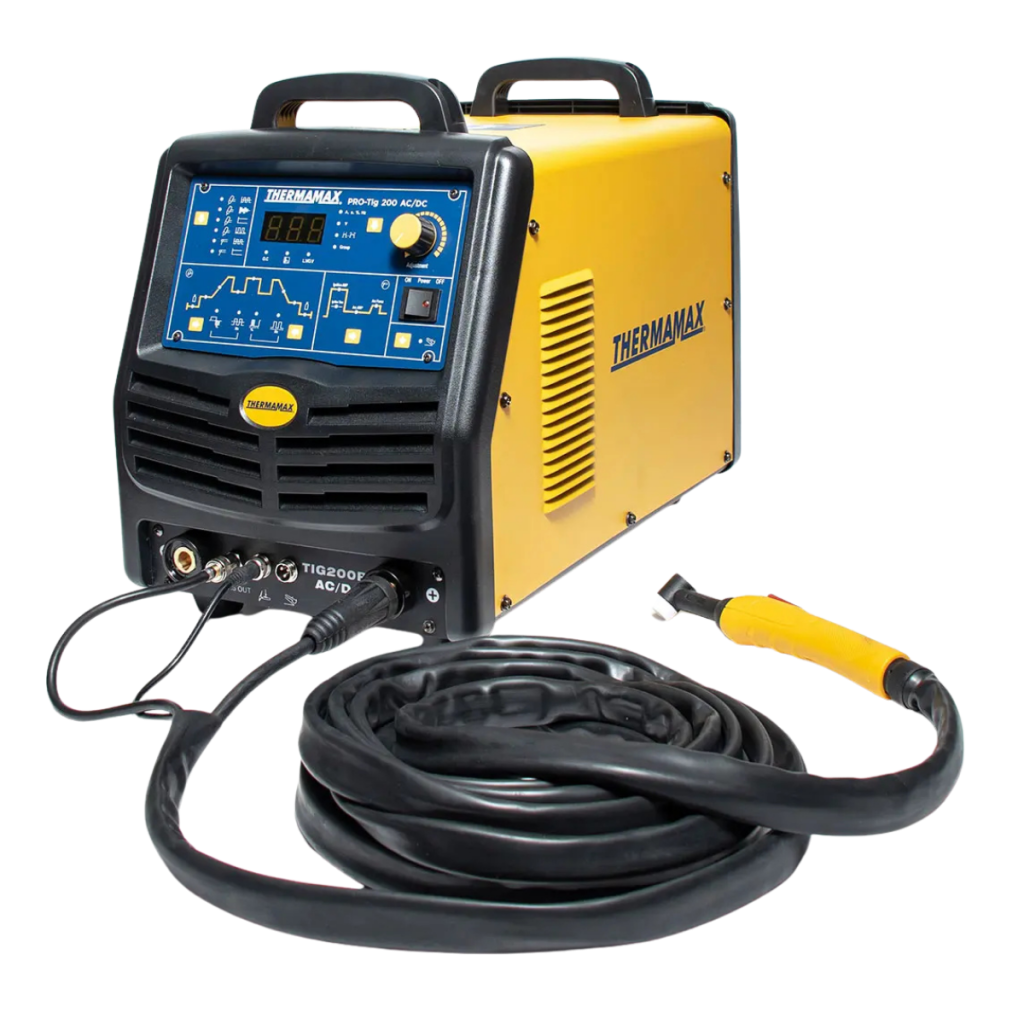

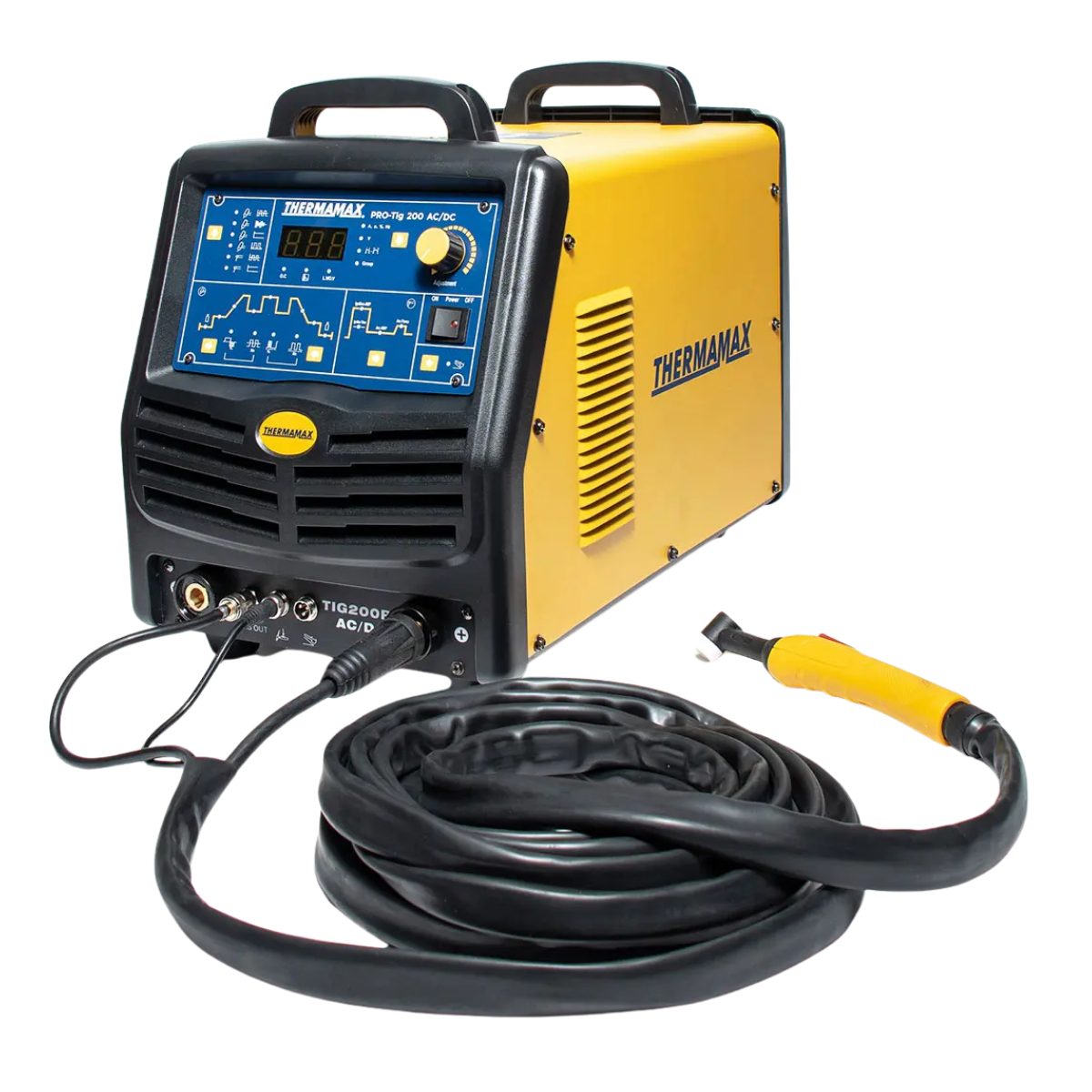

Thermamax Griffin PRO-TIG 200 AC/DC Welder
200A · 60% duty · 220V
Single-phase AC/DC pulse TIG and MMA inverter with a 200A-rated TIG output, high-frequency start, aluminium capability, 60% rated duty cycle and digital parameter control.
R28531,50 incl. Vat
In stock
Rated TIG output
200 A
Current type
AC / DC
Rated duty cycle
60%
Machine overview
Set up for the work in front of you.
The confirmed specifications are organised for quick comparison. Open any line for the practical detail.
Rated TIG output 200 A
The official brochure gives a rated TIG output of 200A at 18V.
Current type AC / DC
AC and DC TIG modes cover aluminium, steel and stainless applications.
Rated duty cycle 60%
The current supplier list describes the model as 60% at 190A.
Input range 190-250 V
The official brochure specifies single-phase 190-250V AC, 50/60Hz input.
Arc start HF / contact
The brochure lists both high-frequency and contact arc ignition.
Item code 31-131120-11
Use the item code to confirm the exact machine and kit.
Why this machine
Control the full TIG cycle
Adjust current stages, pulse, AC frequency, slope, gas timing and spot duration from the digital interface.
Save repeatable parameter groups
Organise welding parameters into five groups for different welding tasks.
AC/DC TIG for steel, stainless and aluminium
The Thermamax Griffin PRO-TIG 200 AC/DC provides DC, DC pulse, AC and AC pulse TIG modes, plus MMA. AC output gives the cleaning action normally required for TIG welding aluminium, while DC covers steel and stainless work.
Digital control across the weld cycle
Adjust initial, peak, base and crater current; AC and pulse frequency; upslope and downslope; gas pre-flow and post-flow; and spot-weld time. Five parameter groups let operators organise settings for different welding tasks.
Workshop kit with foot control
The 2026 supplier list identifies an earth cable, 26 trigger TIG torch, Phoenix flowmeter and foot control. An argon cylinder, tungsten electrodes, filler rods and PPE are not listed as included.
| Welding Process | TIG, Stick / ARC / MMA, Multi-Process |
| Input Voltage | 220V |
| Output Amperage | 200A |
| Material | Mild / Carbon Steel, Stainless Steel, Aluminium |
| Torch Family | WP26 |
| Cooling Method | Air-Cooled |
| Gas Requirement | Argon |
| Start Method | High Frequency (HF) |
| Current Type | AC / DC |
| Application Level | Professional Workshop |
| Input-voltage range | Single-phase 190-250 V AC, 50/60 Hz |
| Rated input | 4.6 kVA / 4.2 kW |
| Recommended fuse capacity | 40 A |
| Rated output | TIG 200 A / 18 V; MMA 160 A / 26.4 V |
| TIG modes | DC / DC pulse / AC / AC pulse / spot TIG |
| Rated duty cycle | 60% (2026 supplier list describes 60% at 190 A) |
| No-load voltage | 60 V |
| Protection / insulation | IP23 / Class H |
| Dimensions | 570 x 350 x 420 mm |
| Weight | 27 kg |
- Earth cable
- 26 trigger TIG torch
- Phoenix flowmeter
- Foot control
The official Thermamax Griffin brochure states a three-year conditional warranty against defects in materials and workmanship, including parts and labour. Confirm Amalgum's written coverage, exclusions, remedies, claim process and transport responsibilities before purchase. Your rights under applicable consumer law still apply.
Related products
More from this category
Review each product page for its current price, availability, and purchasing options.
Common questions
Before you buy.
Can the Thermamax PRO-TIG 200 weld aluminium?
Yes. The official Thermamax material describes AC/DC TIG operation for mild steel, stainless steel and aluminium.
What is the difference between this and the TIG200P DC Pulse?
The PRO-TIG 200 adds AC TIG and AC pulse TIG for aluminium, broader digital parameter control and a 27kg workshop chassis. The TIG200P is a lighter 6.13kg DC-only pulse TIG machine for steel and stainless work.
Does it have high-frequency start and pulse?
Yes. The official brochure lists high-frequency or contact ignition, DC pulse TIG and AC pulse TIG.
What comes in the listed kit?
The 2026 supplier list names an earth cable, 26 trigger TIG torch, Phoenix flowmeter and foot control.
Is an argon cylinder included?
No argon cylinder is listed in the package. Confirm the required argon supply, tungsten and filler material before ordering.
Why are several different amperage ranges shown?
The brochure separates rated output, MMA welding current, arc-ignition current and TIG stage-control ranges. They describe different functions and should not be collapsed into one number.
What electrical supply is required?
The official brochure specifies single-phase 190-250V AC at 50/60Hz and recommends a 40A fuse. A qualified electrician should confirm the circuit and installation for your workshop.
What warranty applies?
The official Griffin brochure states a three-year conditional warranty against defects in materials and workmanship, including parts and labour. Confirm Amalgum's written coverage, exclusions, claim process and transport terms before purchase.
Ready when the numbers fit
Thermamax Griffin PRO-TIG 200 AC/DC Welder
Review the confirmed specification, then add it to your quote basket or ask us about the job before deciding.
Delivery charges depend on the order and destination. Gas orders and delivered orders below R2,000 attract transport charges; collection can be arranged as an alternative.
R28531,50 incl. Vat
Not sure this is the right one?
WhatsApp us the job and we'll tell you — including when a different product fits better.
